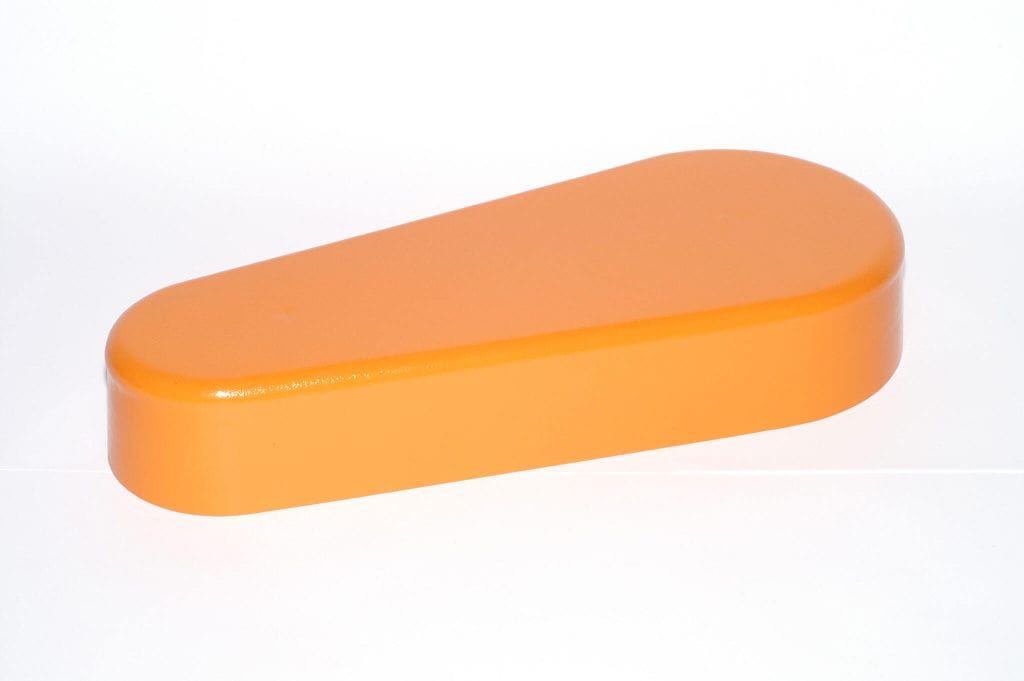

Tapered Unflanged Guards
Tapered unflanged guards cover belt or chain drives with different sized sheaves or sprockets.
A tabbed backplate covers the back of the machine guard. Unflanged guards are mounted through the side of the guard and the tabs of the backplate, with extruded u-nuts that ensure fastening metal-to-metal.
Note: MGC normal manufacturing policy does not include cutting holes for shafts or making brackets for mounting. This can be done on special orders.
| Part # |
Height A |
Diameter B |
Diameter B1 |
Inner Length C |
Center F |
Backplate Part # | BP Width
D |
BP Length
E |
BP Thickness |
|---|---|---|---|---|---|---|---|---|---|
| UTG8.52044 | 8.5 | 16 | 20 | 44 | 25.98 | *UTB20x44q | 16 | 20 | 0.1875 |
| UTG6.72129 | 6.75 | 6.25 | 19.5 | 27.75 | 15.51 | *UTB21x29n | 8.375 | 22.875 | 0.1875 |
| UTG5.72261 | 5.75 | 14 | 22 | 61 | 42.99 | *UTB22x61k | 14.75 | 22.75 | 0.1875 |
| UTG5.51235 | 5.5 | 8.5 | 12 | 34.75 | 10.24 | *UTB12x35k | 8.5 | 12 | 0.1875 |
| UTG52144 | 5 | 14.25 | 20.25 | 42.875 | 25.63 | *UTB21x44j | 16 | 22 | 0.1875 |
| UTG51738 | 5 | 13 | 16.75 | 37.375 | 22.99 | *UTB17x38j | 14 | 18 | 0.1875 |
| UTG51949 | 5 | 9.5 | 19 | 48.75 | 34.49 | *UTB19x49j | 10.125 | 19.625 | 0.1875 |
| UTG4.71834 | 4.75 | 10 | 17.625 | 32.875 | 19.49 | *UTB18x34j | 11 | 19.25 | 0.1875 |
| UTG4.51730.5 | 4.5 | 12 | 17 | 30.5 | 15.98 | *TB19x32.5j | 14 | 19 | 0.1875 |
| UTG4.53351 | 4.5 | 10 | 33 | 51 | 29.02 | *UTB33x51i | 10 | 33 | 0.1875 |
| UTG4.51948 | 4.5 | 10 | 19 | 48 | 33.5 | *UTB19x48i | 10 | 19 | 0.1875 |
| UTG4.51442 | 4.5 | 10 | 14 | 42 | 30 | *UTB14x42i | 10 | 14 | 0.1875 |
| UTG4.51525 | 4.5 | 8 | 15 | 25 | 13.5 | *UTB15x25i | 8.75 | 14.75 | 0.1875 |
| UTG4.51225 | 4.5 | 8 | 12 | 25 | 15.51 | *UTB12x25i | 8.75 | 12.75 | 0.1875 |
| UTG4.51020 | 4.5 | 7 | 10 | 20.125 | 11.73 | UTB10x20i | 7.75 | 10.75 | 0.125 |
| UTG4.51337 | 4.5 | 4.5 | 13 | 37 | 28.5 | *UTB13x37i | 5.125 | 13.625 | 0.1875 |
| UTG42855 | 4 | 14 | 28 | 55 | 34.02 | *UTB28x55h | 14 | 28 | 0.1875 |
| UTG41642 | 4 | 8.75 | 15.75 | 41.75 | 29.02 | *UTB16x42h | 9.25 | 16.25 | 0.1875 |
| UTG41143 | 4 | 8.25 | 11 | 42.25 | 32.76 | UTB11x43h | 8.5 | 11.625 | 0.125 |
| UTG40854 | 4 | 7.125 | 8 | 54 | 45.39 | UTB8x54h | 7.625 | 8.625 | 0.125 |
| UTG41235 | 4 | 6.25 | 11.5 | 33.5 | 26.61 | *UTB12x35h | 7.375 | 12.375 | 0.1875 |
| UTG41025 | 4 | 6.25 | 9.375 | 24.5 | 16.89 | UTB10x25h | 6.25 | 9.75 | 0.125 |
| UTG3.51733 | 3.5 | 12.5 | 16.5 | 33 | 17.64 | *UTB17x33g | 12.375 | 17.625 | 0.1875 |
| UTG3.51430 | 3.5 | 10 | 13.375 | 28.875 | 17.01 | *UTB14x30g | 11.625 | 14.625 | 0.1875 |
| UTG3.51326 | 3.5 | 10 | 13.25 | 26.5 | 14.49 | *UTB13x26g | 10.25 | 13.375 | 0.1875 |
| UTG3.51727.5 | 3.5 | 9.125 | 16.5 | 26.625 | 13.82 | *UTB17x27.5g | 9.5 | 17.625 | 0.1875 |
| UTG3.51645.5 | 3.5 | 9 | 16 | 45.5 | 32.99 | *UTB16x45.5g | 9.5 | 16.5 | 0.1875 |
| UTG3.71644 | 3.5 | 8.125 | 16 | 44 | 32.05 | UTB18x46g | 8.125 | 16 | 0.125 |
| UTG3.51638 | 3.5 | 8 | 16 | 38 | 25.98 | *UTB16x38g | 10.25 | 18.25 | 0.1875 |
| UTG3.51633 | 3.5 | 8 | 16 | 33 | 20.98 | *UTB16x33g | 10.25 | 18.25 | 0.1875 |
| UTG3.51630 | 3.5 | 8 | 16 | 30 | 17.99 | *UTB16x30g | 10.25 | 18.25 | 0.1875 |
| UTG3.58.532.9 | 3.5 | 6.625 | 8.5 | 32.9375 | 25.39 | UTB9.5×34.9g | 7.625 | 9.5 | 0.125 |
| UTG3.41015.7 | 3.5 | 6.5 | 10 | 15.75 | 7.76 | UTB10x15.7g | 6.5 | 10 | 0.125 |
| UTG3.51621 | 3.5 | 6 | 16.25 | 20.375 | 9.61 | *UTB16x21g | 5.5 | 16.625 | 0.1875 |
| UTG3.59.221.9 | 3.5 | 5.75 | 9.3125 | 22.0625 | 15.67 | UTB9.2×21.9g | 6.75 | 10.3125 | 0.125 |
| UTG3.50829 | 3.5 | 5.75 | 8.25 | 28.875 | 21.73 | UTB8x29g | 6.25 | 8.75 | 0.125 |
| UTG3.5718.9 | 3.5 | 5.0625 | 7 | 18.9375 | 12.95 | UTB8x20.9g | 6.0625 | 8 | 0.125 |
| UTG31828 | 3 | 10.75 | 18 | 27.875 | 13.5 | *UTB18x28f | 11.25 | 18.5 | 0.1875 |
| UTG31642 | 3 | 9 | 16 | 41.25 | 29.49 | *UTB16x42f | 9.5 | 16.5 | 0.1875 |
| UTG31025 | 3 | 6.25 | 9.375 | 24.5 | 16.89 | UTB10x25f | 6.25 | 9.75 | 0.125 |
| UTG31424 | 3 | 6 | 14 | 24 | 14.02 | UTB16x26f | 8 | 16 | 0.125 |
| UTG30819 | 3 | 5 | 8.125 | 19.125 | 12.64 | UTB8x19f | 5.375 | 8.5 | 0.125 |
| UTG30823 | 3 | 4.625 | 7.875 | 22.125 | 15.98 | UTB8x23f | 4.875 | 7.875 | 0.125 |
| UTG2.70836.5 | 2.75 | 5.75 | 8 | 36.5 | 29.49 | UTB8x36.5f | 6.125 | 8.375 | 0.125 |
| UTG2.706.418.4 | 2.75 | 4.5 | 6.5 | 18.375 | 12.95 | UTB8.4×20.4e | 4.5 | 6.5 | 0.125 |
| UTG2.77.614.6 | 2.75 | 3.125 | 7.0625 | 16.625 | 9.57 | UTB9.6×16.6e | 3.125 | 7.0625 | 0.125 |
| UTG2.70514 | 2.625 | 3 | 5 | 14.375 | 10.39 | UTB5x14f | 3 | 5 | 0.125 |
| UTG2.51126 | 2.5 | 8.375 | 10.875 | 25.5 | 15.98 | UTB11x26e | 8.625 | 11.125 | 0.125 |
| UTG2.51428 | 2.5 | 7.25 | 14 | 28.625 | 17.99 | *UTB14x28e | 7.75 | 14.5 | 0.1875 |
| UTG2.52340 | 2.5 | 7 | 23 | 40 | 25 | *UTB23x40e | 7.75 | 23.75 | 0.1875 |
| UTG2.51120 | 2.5 | 7 | 11.125 | 20 | 11.14 | UTB11x20e | 7.25 | 11.25 | 0.125 |
| UTG2.50720 | 2.5 | 5 | 6.75 | 19.25 | 13.74 | UTB7x20e | 5.75 | 7.5 | 0.125 |
| UTG2.55.512.7 | 3 | 4.75 | 5.5 | 12.75 | 8.5 | UTB5.8x13e | 6.75 | 7.5 | 0.125 |
| UTG2.50812 | 2.5 | 4 | 8 | 12 | 5.98 | UTB8x12e | 4.75 | 8.75 | 0.125 |
| UTG2.50715 | 2.5 | 4 | 7 | 15 | 9.49 | UTB7x15e | 4.5 | 7.5 | 0.125 |
| UTG2.50512 | 2.5 | 4 | 5 | 12.25 | 7.87 | UTB5x12e | 4.75 | 5.5 | 0.125 |
| UTG2.50515 | 2.5 | 3.875 | 4.625 | 15 | 10.87 | UTB5x15e | 4.5 | 5.25 | 0.125 |
| UTG2.50714 | 2.5 | 3.75 | 6.5 | 13.75 | 8.74 | UTB7x14e | 4.25 | 7 | 0.125 |
| UTG2.50412 | 2.5 | 3.625 | 4.125 | 11.75 | 7.87 | UTB4x12e | 3.875 | 4.375 | 0.125 |
| UTG2.50514 | 2.5 | 2.875 | 4.875 | 14 | 10.12 | UTB5x14e | 2.875 | 4.875 | 0.125 |
| UTG2.53.510 | 2.5 | 1.75 | 3.5 | 10 | 7.36 | UTB3.7x11e | 2.25 | 3.75 | 0.125 |
| UTG2.21128 | 2.25 | 8.5 | 11 | 28.75 | 18.5 | UTB11x28e | 8.5 | 11 | 0.125 |
| UTG20513 | 2 | 3.625 | 4.5 | 13 | 8.74 | UTB5x13d | 3.875 | 4.75 | 0.125 |
| UTG25.213.37 | 2 | 3.5 | 5.25 | 13.375 | 8.86 | UTB6.75×14.6d | 5.25 | 6.75 | 0.125 |
| UTG2049.5 | 2 | 3.125 | 4.125 | 9.5 | 5.87 | UTB6x11.5d | 3.125 | 4.125 | 0.125 |
| UTG23.510 | 2 | 1.75 | 3.5 | 10 | 7.36 | UTB3.7x11d | 2.25 | 3.75 | 0.125 |
| UTG2.03.58.5 | 2 | 1.5 | 3.25 | 8.25 | 5.87 | UTB3.5×8.5d | 1.75 | 3.5 | 0.125 |
| UTG1.77.515.2 | 1.75 | 5 | 7.5 | 15.25 | 9.06 | UTB9.5×17.2c | 5 | 7.5 | 0.125 |
| UTG1.55.59.5 | 1.5 | 3.75 | 5.5 | 9.25 | 4.61 | UTB5.5×9.5c | 4 | 5.625 | 0.125 |
| UTG1.50406 | 1.5 | 1.375 | 3.375 | 5.5 | 3.11 | UTB4x6c | 1.5 | 3.625 | 0.125 |
| UTG0.8037.4 | 1.375 | 2 | 3 | 7.375 | 4.88 | UTB3x9.4b | 3.375 | 4.875 | 0.125 |
| UTG1.20717.5 | 1.25 | 4 | 7.0625 | 17.5 | 12.01 | UTB7x17.5c | 4.5 | 7.5 | 0.125 |
