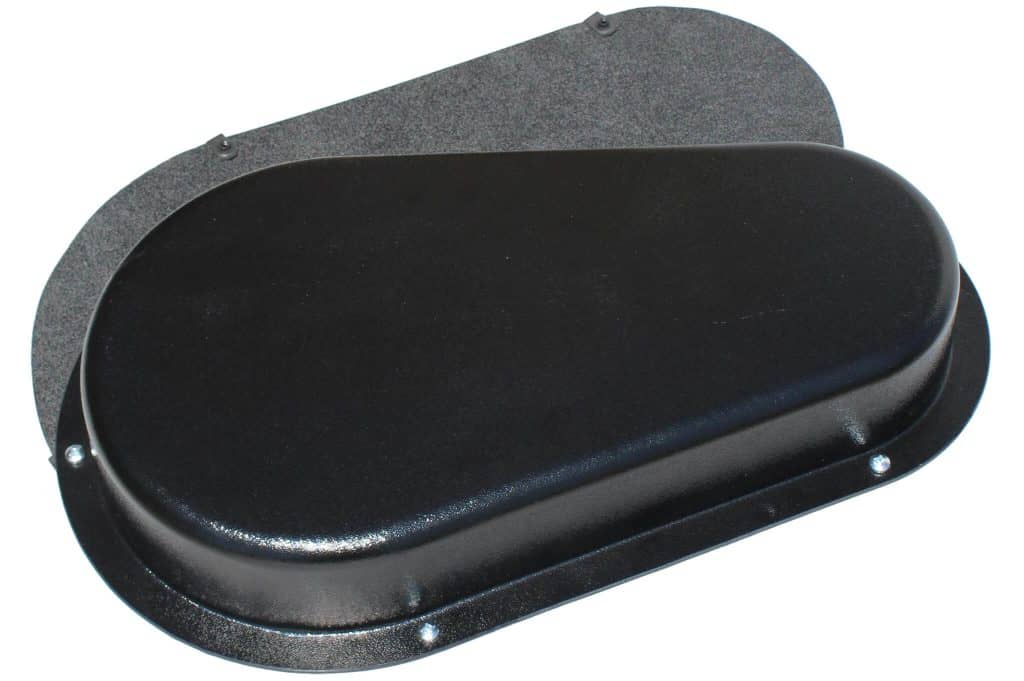

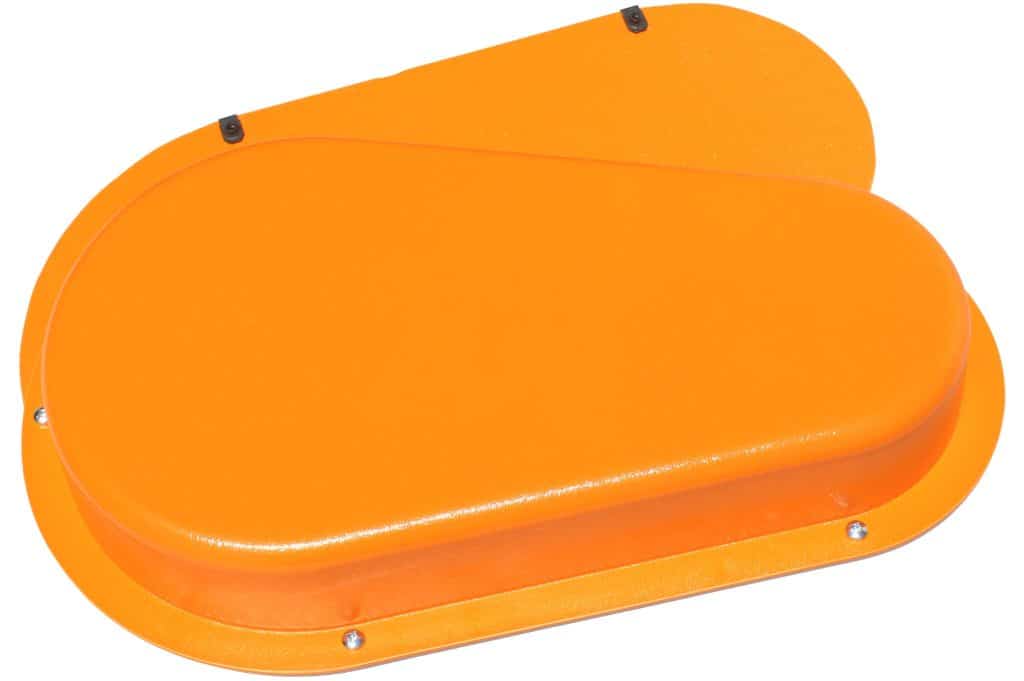

Tapered Guards with Captured Fasteners
Tapered flanged guards cover belt or chain drives with different sized sheaves or sprockets.
The backplate covers the back of the guard, which can be attached to guards through holes or brackets made through the flange.
This style of tapered flanged machine guard also includes safety captured fasteners.
Note: MGC normal manufacturing policy does not include cutting holes for shafts or making brackets for mounting. This can be done on special orders.

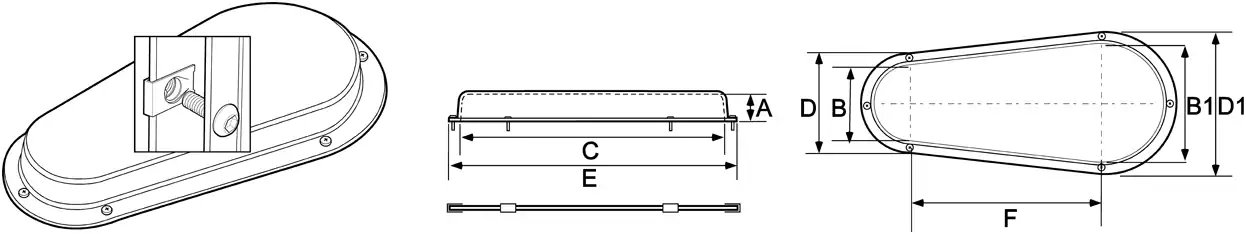

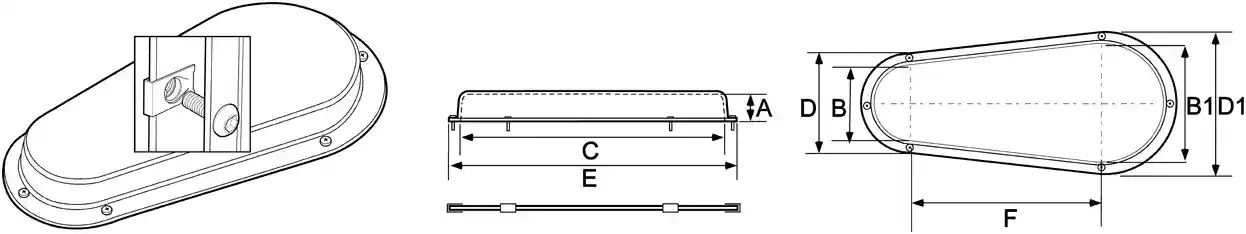

| Part # |
Center |
Diameter B1 |
Height |
Inner Length |
Diameter |
Backplate Part # | BP Width
|
BP Length
|
BP Thickness |
|---|---|---|---|---|---|---|---|---|---|
| TG92044SCF | 25.98 | 20 | 9 | 44 | 16 | *TG22x46rSCF | 18 | 22 | 0.1875 |
| TG7.21928SCF | 15.51 | 19.5 | 7.25 | 27.75 | 6.25 | *TB21x30nSCF | 9.125 | 23.5 | 0.1875 |
| TG6.22261SCF | 42.99 | 22 | 6.25 | 61 | 14 | *TB24x63lSCF | 16 | 24 | 0.1875 |
| TG61235SCF | 10.24 | 12 | 6 | 34.75 | 8.5 | *TB14x37lSCF | 10.5 | 14 | 0.1875 |
| TG5.52144SCF | 25.63 | 20.25 | 5.5 | 42.875 | 14.25 | *TB23x46kSCF | 17 | 23 | 0.1875 |
| TG5.51949SCF | 34.49 | 19 | 5.5 | 48.75 | 9.5 | *TB21x51kSCF | 11.75 | 21.25 | 0.1875 |
| TG5.51738SCF | 22.99 | 16.75 | 5.5 | 37.375 | 13 | *TB19x40kSCF | 15 | 19 | 0.1875 |
| TG5.21833SCF | 19.49 | 17.625 | 5.25 | 32.875 | 10 | *TB20x35jSCF | 12 | 20.25 | 0.1875 |
| TG53346SCF | 29.02 | 33 | 5 | 51 | 10 | *TB35x53jSCF | 12 | 35 | 0.1875 |
| TG514730.5SCF | 15.98 | 17 | 5 | 30.5 | 12 | *TB19x32.5jSCF | 14 | 19 | 0.1875 |
| TG53351SCF | 29.02 | 33 | 5 | 51 | 10 | *TB35x53jSCF | 12 | 35 | 0.1875 |
| TG51948SCF | 33.5 | 19 | 5 | 48 | 10 | *TB21x50jSCF | 12 | 21 | 0.1875 |
| TG51525SCF | 13.5 | 15 | 5 | 25 | 8 | *TB17x27jSCF | 10.25 | 17.25 | 0.1875 |
| TG51442SCF | 30 | 14 | 5 | 42 | 10 | *TB16x44jSCF | 12 | 16 | 0.1875 |
| TG51337SCF | 28.5 | 13 | 5 | 37 | 4.5 | *TB15X39jSCF | 6.625 | 15.125 | 0.1875 |
| TG51225SCF | 15.51 | 12 | 5 | 25 | 8 | TB14x27jSCF | 10.25 | 14.25 | 0.125 |
| TG51020SCF | 11.73 | 10 | 5 | 20.125 | 7 | TB12x22jSCF | 9.25 | 12.25 | 0.125 |
| TG4.52855SCF | 34.02 | 28 | 4.5 | 55 | 14 | *TB30x57iSCF | 16 | 30 | 0.1875 |
| TG4.51642SCF | 29.02 | 15.75 | 4.5 | 41.75 | 8.75 | *TB18x44iSCF | 10.875 | 17.875 | 0.1875 |
| TG4.51235SCF | 26.61 | 11.5 | 4.5 | 33.5 | 6.25 | *TB14x37iSCF | 8.5 | 13.5 | 0.1875 |
| TG4.51143SCF | 32.76 | 11 | 4.5 | 42.25 | 8.25 | *TB13x45iSCF | 9.75 | 12.75 | 0.1875 |
| TG4.50854SCF | 45.39 | 8 | 4.5 | 54 | 7.125 | *TB10x56iSCF | 8.75 | 9.75 | 0.1875 |
| TG4.51025SCF | 16.89 | 9.375 | 4.5 | 24.5 | 6.25 | TB12x27iSCF | 8.125 | 11.25 | 0.125 |
| TG41733SCF | 17.64 | 16.5 | 4 | 33 | 12.5 | *TB19x35hSCF | 14.75 | 18.75 | 0.1875 |
| TG41727SCF | 13.82 | 16.5 | 4 | 26.625 | 9.125 | *TB19x29hSCF | 9.75 | 18.75 | 0.1875 |
| TG41645.5SCF | 32.99 | 16 | 4 | 45.5 | 9 | *TB18x47.5hSCF | 11 | 18 | 0.1875 |
| TG41644SCF | 32.05 | 16 | 4 | 44 | 8.125 | *TB18x46hSCF | 10.125 | 18 | 0.1875 |
| TG41638SCF | 25.98 | 16 | 4 | 38 | 8 | *TB18x40hSCF | 10.25 | 18.25 | 0.1875 |
| TG41633SCF | 20.98 | 16 | 4 | 33 | 8 | *TB18x35hSCF | 10.25 | 18.25 | 0.1875 |
| TG41630SCF | 17.99 | 16 | 4 | 30 | 8 | *TB18x32hSCF | 10.25 | 18.25 | 0.1875 |
| TG41621SCF | 9.61 | 16.25 | 4 | 20.375 | 6 | *TB18x23hSCF | 8 | 18.25 | 0.1875 |
| TG41430SCF | 17.01 | 13.375 | 4 | 28.875 | 10 | *TB16x32hSCF | 12.75 | 15.75 | 0.1875 |
| TG41326SCF | 14.49 | 13.25 | 4 | 26.5 | 10 | *TB15x28hSCF | 11.75 | 14.75 | 0.1875 |
| TG408.5.32.9SCF | 25.39 | 8.5 | 4 | 32.9375 | 6.625 | *TB9.5×34.9hSCF | 7.625 | 9.5 | 0.1875 |
| TG410153.7SCF | 7.52 | 10 | 4 | 15.75 | 6.5 | TB12x18hSCF | 8.5 | 12 | 0.125 |
| TG409.221.9SCF | 15.67 | 9.3125 | 4 | 22.0625 | 5.75 | TB9.2×21.9hSCF | 6.75 | 10.3125 | 0.125 |
| TG40829SCF | 21.73 | 8.25 | 4 | 28.875 | 5.75 | TB10x31hSCF | 7.75 | 10.25 | 0.125 |
| TG40718.9SCF | 12.95 | 7 | 4 | 18.9375 | 5.0625 | TB8x20.9hSCF | 6.0625 | 8 | 0.125 |
| TG3.51828SCF | 13.5 | 18 | 3.5 | 27.875 | 10.75 | *TB20x30gSCF | 12.5 | 19.75 | 0.1875 |
| TG3.51642SCF | 29.49 | 16 | 3.5 | 41.25 | 9 | *TB18x44gSCF | 11 | 18 | 0.1875 |
| TG3.51424SCF | 14.02 | 14 | 3.5 | 24 | 6 | TB16x26gSCF | 8 | 16 | 0.125 |
| TG3.51025SCF | 16.89 | 9.375 | 3.5 | 24.5 | 6.25 | TB12x27gSCF | 8.125 | 11.25 | 0.125 |
| TG3.50823SCF | 15.98 | 7.875 | 3.5 | 22.125 | 4.625 | TB10x25gSCF | 6.5 | 9.75 | 0.125 |
| TG3.50819SCF | 12.64 | 8.125 | 3.5 | 19.125 | 5 | TB10x21gSCF | 7 | 10.125 | 0.125 |
| TG3.20514SCF | 10.39 | 5 | 3.375 | 14.375 | 3 | TB7x16gSCF | 4.75 | 6.75 | 0.125 |
| TG3.206.418.4SCF | 12.95 | 6.5 | 3.25 | 18.375 | 4.5 | TB8.4×20.4f | 6.5 | 8.5 | 0.125 |
| TG3.20836.5SCF | 29.49 | 8 | 3.25 | 36.5 | 5.75 | TB10x38.5gSCF | 7.625 | 9.875 | 0.125 |
| TG3.27.614.6SCF | 9.57 | 7.0625 | 3.25 | 14.625 | 3.125 | TB9.6×16.6fSCF | 5.125 | 9.0625 | 0.125 |
| TG32340SCF | 25 | 23 | 3 | 40 | 7 | *TB25x42fSCF | 8.875 | 24.875 | 0.1875 |
| TG31428SCF | 17.99 | 14 | 3 | 28.625 | 7.25 | *TB16x30fSCF | 9 | 15.75 | 0.1875 |
| TG31126SCF | 15.98 | 10.875 | 3 | 25.5 | 8.375 | TB13x28fSCF | 10.25 | 12.75 | 0.125 |
| TG31120SCF | 11.14 | 11.125 | 3 | 20 | 7 | TB13x22fSCF | 8.875 | 13 | 0.125 |
| TG30812SCF | 5.98 | 8 | 3 | 12 | 4 | TB10x14fSCF | 6 | 10 | 0.125 |
| TG30720SCF | 13.74 | 6.75 | 3 | 19.25 | 5 | TB9x22fSCF | 7 | 8.75 | 0.125 |
| TG30715SCF | 9.49 | 7 | 3 | 15 | 4 | TB9x17fSCF | 6 | 9 | 0.125 |
| TG30714SCF | 8.74 | 6.5 | 3 | 13.75 | 3.75 | TB9x16fSCF | 5.625 | 8.375 | 0.125 |
| TG30515SCF | 10.87 | 4.625 | 3 | 15 | 3.875 | TB7x17fSCF | 5.75 | 6.5 | 0.125 |
| TG30514SCF | 10.12 | 4.875 | 3 | 14 | 2.875 | TB7x16fSCF | 5.5 | 7.3333333333333 | 0.125 |
| TG3.05.512.7SCF | 8.5 | 5.5 | 3 | 12.75 | 4.75 | TB7.5×14.7fSCF | 6.75 | 7.5 | 0.125 |
| TG30512SCF | 7.87 | 5 | 3 | 12.25 | 4 | TB7x14fSCF | 6 | 6.875 | 0.125 |
| TG30412SCF | 7.87 | 4.125 | 3 | 11.75 | 3.625 | TB6x14fSCF | 5.5 | 6.125 | 0.125 |
| TG303.510SCF | 7.36 | 3.5 | 3 | 10 | 1.75 | TB3.75x10fSCF | 3.75 | 5.5 | 0.125 |
| TG2.81128SCF | 18.5 | 11 | 2.75 | 28.75 | 8.5 | TB13x30fSCF | 10.5 | 13 | 0.125 |
| TG2.53.58.5SCF | 5.87 | 3.25 | 2.5 | 8.25 | 1.5 | TB5.5×10.5eSCF | 3.35 | 5.5 | 0.125 |
| TG2.50513SCF | 8.74 | 4.5 | 2.5 | 13 | 3.625 | TB7x15eSCF | 5.5 | 6.375 | 0.125 |
| TG2.5049.5SCF | 5.87 | 4.125 | 2.5 | 9.5 | 3.125 | TB6x11.5eSCF | 5.125 | 6.125 | 0.125 |
| TG2.55.213.37SCF | 8.86 | 5.25 | 2.5 | 13.375 | 3.5 | TB6.75×14.6eSCF | 5.25 | 6.75 | 0.125 |
| TG2.53.510SCF | 7.36 | 3.5 | 2.5 | 10 | 1.75 | TB3.75x10eSCF | 3.75 | 5.5 | 0.125 |
| TG2.27.515.2SCF | 9.06 | 7.5 | 2.25 | 15.25 | 5 | TB9.5×17.2dSCF | 7 | 9.5 | 0.125 |
| TG25.59.5SCF | 4.61 | 5.5 | 2 | 9.25 | 3.75 | TB7.5×11.5dSCF | 5.5 | 7.25 | 0.125 |
| TG20406SCF | 3.11 | 3.375 | 2 | 5.5 | 1.375 | TB6x8dSCF | 3.125 | 5.25 | 0.125 |
| TG1.70717.5SCF | 12.01 | 7.0625 | 1.8125 | 17.5 | 4 | TB9x19.5dSCF | 6 | 9 | 0.125 |
| TG1.4037.4SCF | 4.88 | 3 | 1.375 | 7.375 | 2 | TB3.4×9.4cSCF | 3.375 | 4.875 | 0.125 |
