Tapered Guards

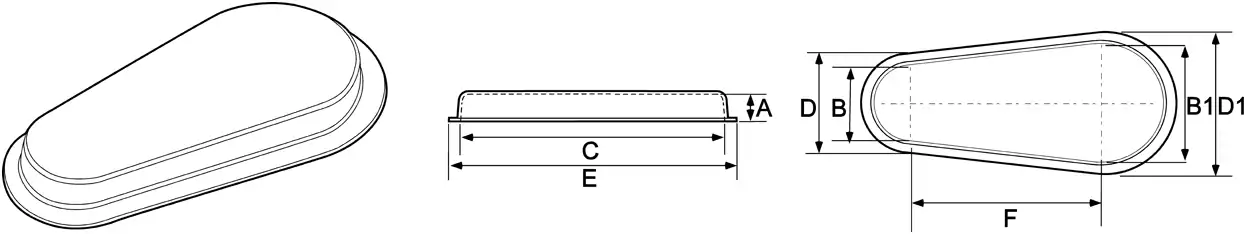

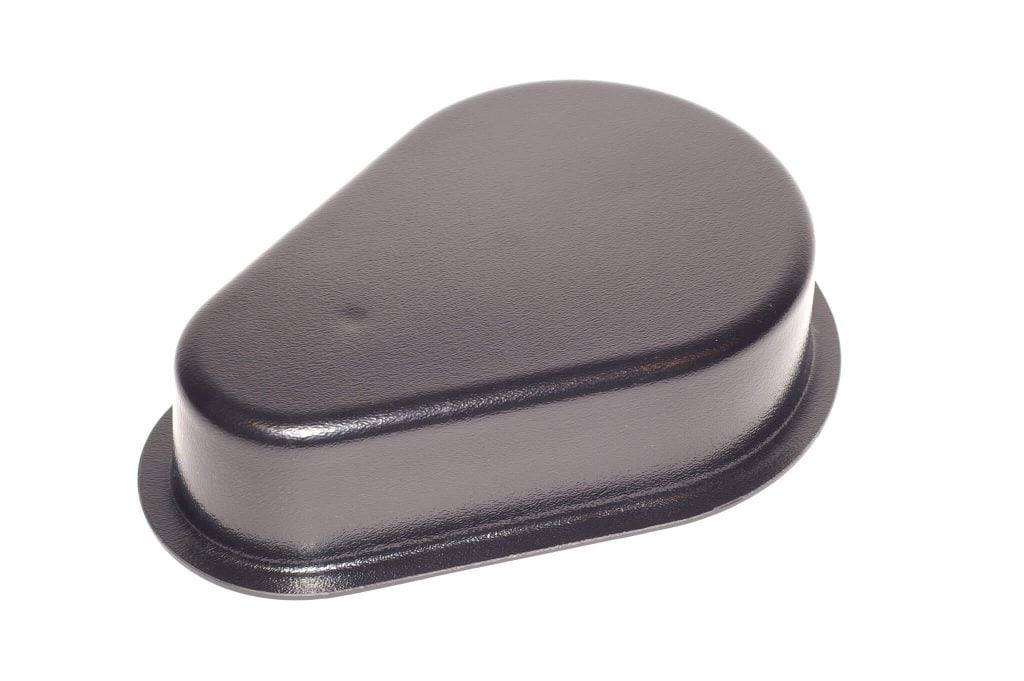

Tapered flanged guards cover belt or chain drives with different sized sheaves or sprockets.
The backplate covers the back of the machine guard, which can be attached to guards through holes or brackets made through the flange.
Note: MGC normal manufacturing policy does not include cutting holes for shafts or making brackets for mounting. This can be done on special orders.
| Part # |
Center |
Diameter B1 |
Height |
Inner Length |
Diameter |
Backplate Part # | BP Width
|
BP Length
|
BP Thickness |
|---|---|---|---|---|---|---|---|---|---|
| TG92044 | 25.98 | 20 | 9 | 44 | 16 | *TB22x46r | 18 | 22 | 0.1875 |
| TG7.21928 | 15.51 | 19.5 | 7.25 | 27.75 | 6.25 | *TB21x30n | 9.125 | 23.5 | 0.1875 |
| TG6.22261 | 42.99 | 22 | 6.25 | 61 | 14 | *TB24x63l | 16 | 24 | 0.1875 |
| TG61235 | 10.24 | 12 | 6 | 34.75 | 8.5 | *TB14x37l | 10.5 | 14 | 0.1875 |
| TG5.52144 | 25.63 | 20.25 | 5.5 | 42.875 | 14.25 | *TB23x46k | 17 | 23 | 0.1875 |
| TG5.51738 | 22.99 | 16.75 | 5.5 | 37.375 | 13 | *TB19x40k | 15 | 19 | 0.1875 |
| TG5.51949 | 34.49 | 19 | 5.5 | 48.75 | 9.5 | *TB21x51k | 11.75 | 21.25 | 0.1875 |
| TG5.21833 | 19.49 | 17.625 | 5.25 | 32.875 | 10 | *TB20x35j | 12 | 20.25 | 0.1875 |
| TG514730.5 | 15.98 | 17 | 5 | 30.5 | 12 | *TB19x32.5j | 14 | 19 | 0.1875 |
| TG53351 | 29.02 | 33 | 5 | 51 | 10 | *TB35x53j | 12 | 35 | 0.1875 |
| TG51948 | 33.5 | 19 | 5 | 48 | 10 | *TB21x50j | 12 | 21 | 0.1875 |
| TG51442 | 30 | 14 | 5 | 42 | 10 | *TB16x44j | 12 | 16 | 0.1875 |
| TG51525 | 13.5 | 15 | 5 | 25 | 8 | *TB17x27j | 10.25 | 17.25 | 0.1875 |
| TG51225 | 15.51 | 12 | 5 | 25 | 8 | *TB14x27j | 10.25 | 14.25 | 0.1875 |
| TG51020 | 11.73 | 10 | 5 | 20.125 | 7 | TB12x22j | 9.25 | 12.25 | 0.125 |
| TG51337 | 28.5 | 13 | 5 | 37 | 4.5 | *TB15X39j | 6.625 | 15.125 | 0.1875 |
| TG4.52855 | 34.02 | 28 | 4.5 | 55 | 14 | *TB30x57i | 16 | 30 | 0.1875 |
| TG4.51642 | 29.02 | 15.75 | 4.5 | 41.75 | 8.75 | *TB18x44i | 10.875 | 17.875 | 0.1875 |
| TG4.51143 | 32.76 | 11 | 4.5 | 42.25 | 8.25 | TB13x45i | 9.75 | 12.75 | 0.125 |
| TG4.50854 | 45.39 | 8 | 4.5 | 54 | 7.125 | TB10x56i | 8.75 | 9.75 | 0.125 |
| TG4.51235 | 26.61 | 11.5 | 4.5 | 33.5 | 6.25 | *TB14x37i | 8.5 | 13.5 | 0.1875 |
| TG4.51025 | 16.89 | 9.375 | 4.5 | 24.5 | 6.25 | TB12x27i | 8.125 | 11.25 | 0.125 |
| TG41733 | 17.64 | 16.5 | 4 | 33 | 12.5 | *TB19x35h | 14.75 | 18.75 | 0.1875 |
| TG41430 | 17.01 | 13.375 | 4 | 28.875 | 10 | *TB14x30g | 12.75 | 15.75 | 0.1875 |
| TG41326 | 14.49 | 13.25 | 4 | 26.5 | 10 | *TB15x28h | 11.75 | 14.75 | 0.1875 |
| TG41727 | 13.82 | 16.5 | 4 | 26.625 | 9.125 | *TB19x29h | 9.75 | 18.75 | 0.1875 |
| TG41645.5 | 32.99 | 16 | 4 | 45.5 | 9 | *TB18x47.5h | 11 | 18 | 0.1875 |
| TG41644 | 32.05 | 16 | 4 | 44 | 8.125 | TB18.46h | 10.125 | 18 | 0.125 |
| TG41638 | 25.98 | 16 | 4 | 38 | 8 | *TB18x40h | 10.25 | 18.25 | 0.1875 |
| TG41633 | 20.98 | 16 | 4 | 33 | 8 | *TB18x35h | 10.25 | 18.25 | 0.1875 |
| TG41630 | 17.99 | 16 | 4 | 30 | 8 | *TB18x32h | 10.25 | 18.25 | 0.1875 |
| TG408.5.32.9 | 25.39 | 8.5 | 4 | 32.9375 | 6.625 | *TB9.5×34.9h | 7.625 | 9.5 | 0.1875 |
| TG41015.7 | 7.52 | 10 | 4 | 15.75 | 6.5 | TB12x18h | 8.5 | 12 | 0.125 |
| TG41621 | 9.61 | 16.25 | 4 | 20.375 | 6 | *TB18x23h | 8 | 18.25 | 0.1875 |
| TG409.221.9 | 15.67 | 9.3125 | 4 | 22.0625 | 5.75 | TB9.2×21.9h | 5.75 | 9.25 | 0.125 |
| TG40829 | 21.73 | 8.25 | 4 | 28.875 | 5.75 | TB10x31h | 7.75 | 10.25 | 0.125 |
| TG40718.9 | 12.95 | 7 | 4 | 18.9375 | 5.0625 | TB8x20.9h | 6.0625 | 8 | 0.125 |
| TG3.51828 | 13.5 | 18 | 3.5 | 27.875 | 10.75 | *TB20x30g | 12.5 | 19.75 | 0.1875 |
| TG3.51642 | 29.49 | 16 | 3.5 | 41.25 | 9 | *TB18x44g | 11 | 18 | 0.1875 |
| TG3.51025 | 16.89 | 9.375 | 3.5 | 24.5 | 6.25 | TB12x27g | 8.125 | 11.25 | 0.125 |
| TG3.51424 | 14.02 | 14 | 3.5 | 24 | 6 | TB16x26g | 8 | 16 | 0.125 |
| TG3.50819 | 12.64 | 8.125 | 3.5 | 19.125 | 5 | TB10x21g | 7 | 10.125 | 0.125 |
| TG3.50823 | 15.98 | 7.875 | 3.5 | 22.125 | 4.625 | TB10x25g | 6.5 | 9.75 | 0.125 |
| TG3.20514 | 10.39 | 5 | 3.375 | 14.375 | 3 | TB7x16g | 4.75 | 6.75 | 0.125 |
| TG3.20836.5 | 29.49 | 8 | 3.25 | 36.5 | 5.75 | TB10x38.5g | 7.625 | 9.875 | 0.125 |
| TG3.206.418.4 | 12.95 | 6.5 | 3.25 | 18.375 | 4.5 | TB8.4×20.4f | 6.5 | 8.5 | 0.125 |
| TG3.27.614.6 | 9.57 | 7.0625 | 3.25 | 14.625 | 3.125 | TB9.6×16.6f | 5.125 | 9.0625 | 0.125 |
| TG31126 | 15.98 | 10.875 | 3 | 25.5 | 8.375 | TB13x28f | 10.25 | 12.75 | 0.125 |
| TG31428 | 17.99 | 14 | 3 | 28.625 | 7.25 | *TB16x30f | 9 | 15.75 | 0.1875 |
| TG32340 | 25 | 23 | 3 | 40 | 7 | *TB25x42f | 8.875 | 24.875 | 0.1875 |
| TG31120 | 11.14 | 11.125 | 3 | 20 | 7 | TB13x22f | 8.875 | 13 | 0.125 |
| TG30720 | 13.74 | 6.75 | 3 | 19.25 | 5 | TB9x22f | 7 | 8.75 | 0.125 |
| TG305.512.7 | 8.5 | 5.5 | 3 | 12.75 | 4.75 | TB7.5×14.7f | 6.75 | 7.5 | 0.125 |
| TG30812 | 5.98 | 8 | 3 | 12 | 4 | TB10x14f | 6 | 10 | 0.125 |
| TG30715 | 9.49 | 7 | 3 | 15 | 4 | TB9x17f | 6 | 9 | 0.125 |
| TG30512 | 7.87 | 5 | 3 | 12.25 | 4 | TB7x14f | 6 | 6.875 | 0.125 |
| TG30515 | 10.87 | 4.625 | 3 | 15 | 3.875 | TB7x17f | 5.75 | 6.5 | 0.125 |
| TG30714 | 8.74 | 6.5 | 3 | 13.75 | 3.75 | TB9x16f | 5.625 | 8.375 | 0.125 |
| TG30412 | 7.87 | 4.125 | 3 | 11.75 | 3.625 | TB6x14f | 5.5 | 6.125 | 0.125 |
| TG30514 | 10.12 | 4.875 | 3 | 14 | 2.875 | TB7x16f | 5.5 | 7.3333333333333 | 0.125 |
| TG303.510 | 7.36 | 3.5 | 3 | 10 | 1.75 | TB3.75x10f | 3.75 | 5.5 | 0.125 |
| TG2.81128 | 18.5 | 11 | 2.75 | 28.75 | 8.5 | TB13x30f | 10.5 | 13 | 0.125 |
| TG2.50513 | 8.74 | 4.5 | 2.5 | 13 | 3.625 | TB7x15e | 5.5 | 6.375 | 0.125 |
| TG2.55.213.37 | 8.86 | 5.25 | 2.5 | 13.375 | 3.5 | TB6.75×14.6e | 5.25 | 6.75 | 0.125 |
| TG2.5049.5 | 5.87 | 4.125 | 2.5 | 9.5 | 3.125 | TB6x11.5e | 5.125 | 6.125 | 0.125 |
| TG2.503.510 | 7.36 | 3.5 | 2.5 | 10 | 1.75 | TB3.75x10f | 3.75 | 5.5 | 0.125 |
| TG2.53.58.5 | 5.87 | 3.25 | 2.5 | 8.25 | 1.5 | TB5.5×10.5e | 3.5 | 5.5 | 0.125 |
| TG2.27.515.2 | 9.06 | 7.5 | 2.25 | 15.25 | 5 | TB9.5×17.2d | 7 | 9.5 | 0.125 |
| TG25.59.5 | 4.61 | 5.5 | 2 | 9.25 | 3.75 | TB7.5×11.5d | 5.5 | 7.25 | 0.125 |
| TG20406 | 3.11 | 3.375 | 2 | 5.5 | 1.375 | TB6x8d | 3.125 | 5.25 | 0.125 |
| TG1.70717.5 | 12.01 | 7.0625 | 1.8125 | 17.5 | 4 | TB9x19.5d | 6 | 9 | 0.125 |
| TG1.4037.4 | 4.88 | 3 | 1.375 | 7.375 | 2 | TB3.4×9.4c | 3.375 | 4.875 | 0.125 |
