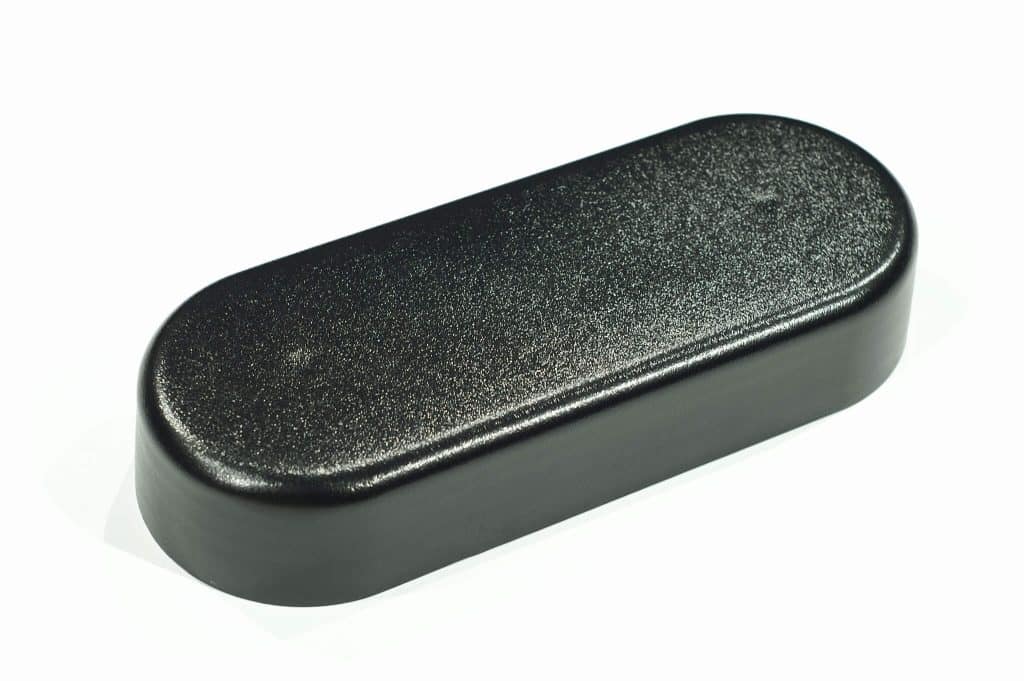

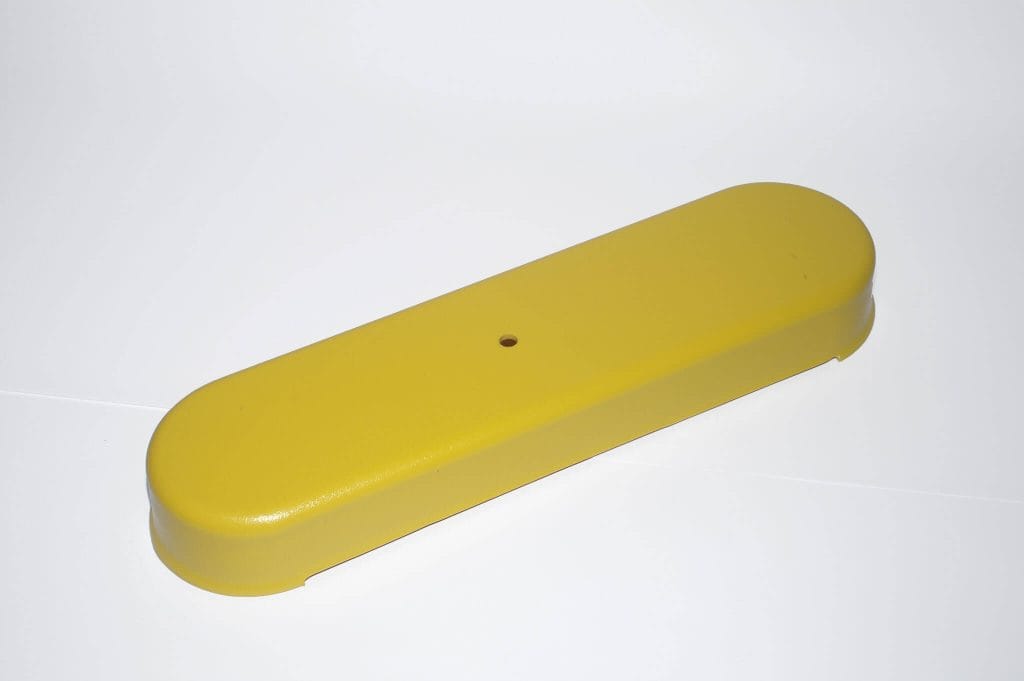

Standard Unflanged Guards
Standard unflanged guards cover belt or chain drives with similar sized sheaves or sprockets.
Standard unflanged machine guards are useful for applications where clearance for mounting is minimal.

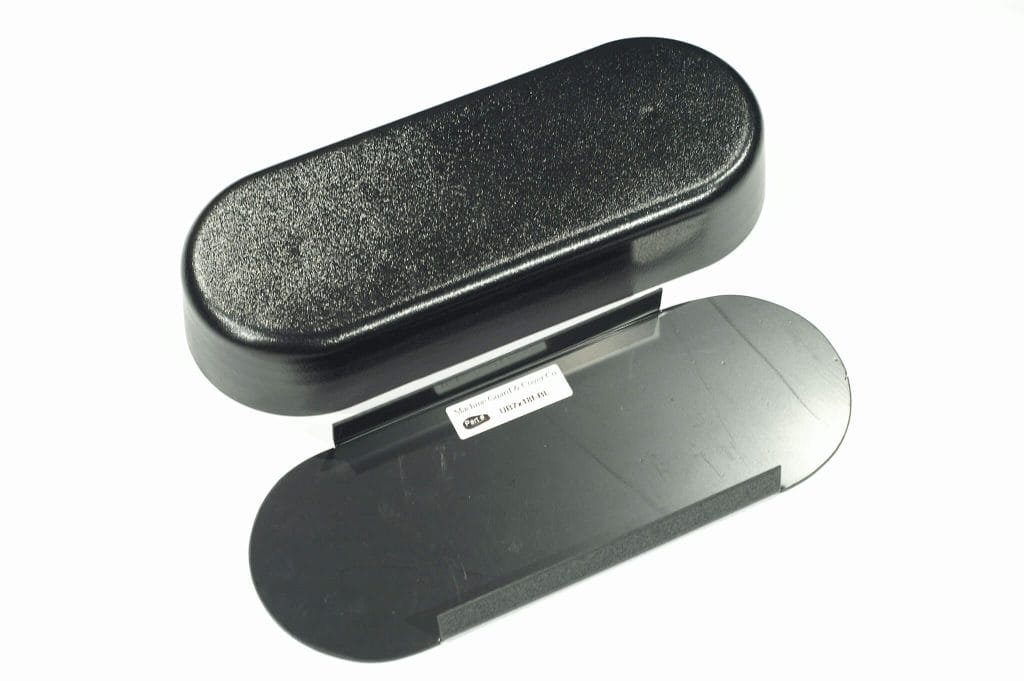

The unflanged guard tabbed backplate is connected to the guard with extruded u-nuts through the side of the guard.
If standard sized guards do not fit machinery, several guards may be re-sized to make a longer or shorter guard.

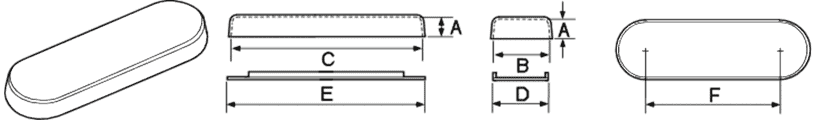

| Part # |
Height A |
Width B |
Length C |
Center F |
Backplate Part # | BP Width
D |
BP Length
E |
BP Thickness |
|---|---|---|---|---|---|---|---|---|
| UG11.51946 | 11.5 | 19 | 46 | 27.01 | *UB19x47k | 19 | 47 | 0.1875 |
| UG101450 | 10 | 14 | 50 | 35.98 | *UB14x50t | 14 | 50 | 0.1875 |
| UG8.52048 | 8.5 | 20 | 49 | 25.98 | *UB20x48q | 20 | 48 | 0.1875 |
| UG6.50715 | 6.5 | 7 | 15 | 7.99 | UB7x15m | 8 | 16 | 0.125 |
| UG62263.5 | 6 | 22 | 63.5 | 41.5 | *UB22x63.5k | 22 | 64 | 0.1875 |
| UG5.52442 | 5.5 | 24 | 42 | 17.99 | *UB24x42k | 24 | 42 | 0.1875 |
| UG5.51935 | 5.5 | 19.125 | 35.25 | 16.14 | *UB19x35k | 19.875 | 36.25 | 0.1875 |
| UG5.51949 | 5.5 | 19 | 49 | 32.99 | *UB19x49k | 19 | 52 | 0.1875 |
| UG5.51642 | 5.5 | 16 | 42 | 30 | *UB16x42k | 12.75 | 42.75 | 0.1875 |
| UG5.51566 | 5.5 | 15 | 66 | 50.98 | *UB15x66k | 15 | 66 | 0.1875 |
| UG5.51554 | 5.5 | 15 | 54 | 39.02 | *UB15x54k | 15 | 54 | 0.1875 |
| UG5.51542 | 5.5 | 15 | 42 | 27.01 | *UB15x42k | 15 | 42 | 0.1875 |
| UG5.51530 | 5.5 | 15 | 30 | 15 | *UB15x30k | 15 | 30 | 0.1875 |
| UG5.51242 | 5.5 | 12 | 42 | 30 | *UB12x42k | 12 | 42 | 0.1875 |
| UG5.51025 | 5.5 | 10 | 25 | 15 | UB10x15k | 10 | 25 | 0.125 |
| UG5.51015 | 5.5 | 10 | 15 | 5 | UB10x15k | 10 | 25 | 0.125 |
| UG51630 | 5 | 15.875 | 29.875 | 14.02 | *UB16x30j | 16.25 | 30.25 | 0.1875 |
| UG51222 | 5 | 12 | 22 | 10 | *UB12x22j | 12.75 | 22.75 | 0.1875 |
| UG4.51341 | 4.5 | 13 | 41 | 27.99 | *UB13x41i | 13 | 41 | 0.1875 |
| UG4.51325 | 4.5 | 13 | 25 | 12.01 | *UB13x25i | 13 | 25 | 0.1875 |
| UG40933 | 4 | 9.125 | 33.625 | 24.37 | UB9x33h | 9.625 | 34 | 0.125 |
| UG40922 | 4 | 9 | 22 | 12.99 | UB9x22h | 9.625 | 22.375 | 0.125 |
| UG3.50925 | 3.5 | 9 | 25 | 19.02 | UB9x25g | 9 | 25 | 0.125 |
| UG3.508.531 | 3.5 | 8.5 | 31 | 22.52 | UB8.5x31g | 8.5 | 31 | 0.125 |
| UG3.58.528.5 | 3.5 | 8.5 | 28.5 | 20 | UB8.5×28.5g | 8.75 | 20.75 | 0.125 |
| UG3.58.520.5 | 3.5 | 8.5 | 20.5 | 12.01 | UB8.5×20.5g | 8.75 | 20.75 | 0.125 |
| UG3.50722 | 3.5 | 7.125 | 22.25 | 15.12 | UB7x22g | 7.5 | 22.625 | 0.125 |
| UG3.50616 | 3.5 | 6 | 16 | 10 | UB7x17g | 8.5 | 18.5 | 0.125 |
| UG3.50619 | 3.5 | 5.375 | 19 | 13.62 | UB6x19g | 5.875 | 19.5 | 0.125 |
| UG3.53.56.5 | 3.5 | 3.5 | 6.5 | 2.99 | UB4.5×7.5g | 4.5 | 7.5 | 0.125 |
| UG31027 | 3 | 9.75 | 27.125 | 17.36 | UB10x27f | 10.125 | 27.5 | 0.125 |
| UG30740 | 3 | 7 | 40.125 | 32.99 | UB7x40f | 7.375 | 40.375 | 0.125 |
| UG30712 | 3 | 6.875 | 11.875 | 5 | UB7x12f | 7.125 | 12.125 | 0.125 |
| UG30736 | 3 | 6.75 | 36.125 | 29.49 | UB7x36f | 7.125 | 36.625 | 0.125 |
| UG30732 | 3 | 6.75 | 32.125 | 25.51 | UB7x32f | 7 | 32.5 | 0.125 |
| UG30730 | 3 | 6.75 | 30.125 | 23.5 | UB7x30f | 7 | 30.5 | 0.125 |
| UG30727 | 3 | 6.75 | 27.125 | 20.39 | UB7x27f | 7 | 27.375 | 0.125 |
| UG30725 | 3 | 6.75 | 24.75 | 18.11 | UB7x25f | 7 | 25.125 | 0.125 |
| UG30724 | 3 | 6.75 | 24.125 | 17.13 | UB7x24f | 7.125 | 24.375 | 0.125 |
| UG30721 | 3 | 6.75 | 21 | 14.25 | UB7x21f | 7.125 | 21.375 | 0.125 |
| UG30718 | 3 | 6.75 | 18 | 11.26 | UB7x18f | 7 | 18.25 | 0.125 |
| UG36.817 | 3 | 6.75 | 17 | 10 | UB7.75x18f | 7.75 | 18 | 0.125 |
| UG30715 | 3 | 6.75 | 14.875 | 8.11 | UB7x15f | 7.125 | 15.25 | 0.125 |
| UG306.2527.5 | 3 | 6.25 | 27.5 | 21.26 | UB7.25x285f | 7.25 | 28.5 | 0.125 |
| UG30618.5 | 3 | 6.25 | 18.5 | 12.24 | UB6x18.5f | 6.5 | 18.5 | 0.125 |
| UG30419 | 3 | 3.75 | 18.875 | 15.24 | UB4x19f | 4.75 | 19.875 | 0.125 |
| UG2.9306.6827.93 | 2.9375 | 6.6875 | 27.9375 | 21.26 | UB8x29f | 7.6875 | 28.9375 | 0.125 |
| UG2.754.618.6 | 2.75 | 4.625 | 18.625 | 14.02 | UB6.6×20.6f | 5.625 | 19.625 | 0.125 |
| UG2.7504.512.6 | 2.75 | 4.5 | 12.625 | 8.11 | B5.5×15.6g | 5.5 | 15.625 | 0.125 |
| UG2.51237 | 2.5 | 11.75 | 37 | 25 | *UB12x37e | 12 | 37.5 | 0.1875 |
| UG2.51227 | 2.5 | 11.75 | 27.375 | 15.51 | *UB12x27e | 12 | 27.5 | 0.1875 |
| UG2.51034 | 2.5 | 9.875 | 34.25 | 24.25 | UB10x34e | 10.125 | 34.5 | 0.125 |
| UG2.51024 | 2.5 | 9.875 | 24.125 | 14.25 | UB10x24e | 10.125 | 24.375 | 0.125 |
| UG2.50823 | 2.5 | 8.125 | 23.25 | 15.12 | UB8x23e | 8.5 | 23.5 | 0.125 |
| UG2.50818 | 2.5 | 8 | 18 | 10 | UB8x18e | 8 | 18 | 0.125 |
| G2.57.816.3 | 2.5 | 7.875 | 16.375 | 8.39 | UB9.6×18.13 | 9.375 | 17.875 | 0.125 |
| UG2.50721 | 2.5 | 7.25 | 20.75 | 13.5 | UB7x21e | 7.375 | 21 | 0.125 |
| UG2.50717 | 2.5 | 6.75 | 16.75 | 10 | UB7x17e | 7 | 17 | 0.125 |
| UG2.50525 | 2.5 | 5.6875 | 25.1875 | 19.49 | UB5x25e | 5.625 | 25.125 | 0.125 |
| UG2.50625 | 2.5 | 5.625 | 24.75 | 19.13 | UB6x25e | 5.875 | 25 | 0.125 |
| UG2.50622 | 2.5 | 5.625 | 21.625 | 15.98 | UB6x22e | 5.875 | 21.875 | 0.125 |
| UG2.505.521.5 | 2.5 | 5.5 | 21.5 | 16.5 | UB6x22e | 5.875 | 21.875 | 0.125 |
| UG2.50522 | 2.5 | 5.4375 | 22.375 | 17.01 | UB5x22e | 5.5 | 23.625 | 0.125 |
| UG2.50526 | 2.5 | 5.375 | 26.375 | 20.98 | UB5x26e | 5.5 | 26.5 | 0.125 |
| UG2.50519 | 2.5 | 5.375 | 19.375 | 14.02 | UB5x19e | 5.5 | 19.5 | 0.125 |
| UG2.50517 | 2.5 | 5.375 | 17.25 | 11.89 | UB5x17e | 5.75 | 17.75 | 0.125 |
| UG2.50523.5 | 2.5 | 5.25 | 23 | 17.99 | UB5x23.5e | 5.25 | 23 | 0.125 |
| UG2.55.212.9 | 2.5 | 5.25 | 12.9375 | 7.68 | UB5.25×12.9e | 6.25 | 13.9375 | 0.125 |
| UG2.50510 | 2.5 | 5 | 10.125 | 5 | UB5x10e | 5.375 | 10.375 | 0.125 |
| UG2.50518 | 2.5 | 4.75 | 17.75 | 12.99 | UB5x18e | 5 | 18.125 | 0.125 |
| UG2.54.212 | 2.5 | 4.25 | 11.875 | 7.64 | UB4.2x12e | 4.5 | 12.125 | 0.125 |
| UG2.50429 | 2.5 | 4 | 29 | 25 | UB4x29e | 4.125 | 29.125 | 0.125 |
| UG20825 | 2 | 7.75 | 25 | 17.24 | UB8x25d | 8 | 25.25 | 0.125 |
| UG20625 | 2 | 5.875 | 25 | 19.25 | UB6x25d | 6.125 | 25.375 | 0.125 |
| UG20620 | 2 | 5.75 | 19.75 | 14.02 | UB6x20d | 5.875 | 20 | 0.125 |
| UG20615 | 2 | 5.75 | 14.75 | 9.02 | UB6x15d | 5.875 | 15 | 0.125 |
| UG20612 | 2 | 5.625 | 11.625 | 5.98 | UB6x12d | 5.875 | 11.875 | 0.125 |
| UG20509 | 2 | 4.875 | 9 | 4.02 | UB5x9d | 5.125 | 9.25 | 0.125 |
| UG20516 | 2 | 4.625 | 15.75 | 11.26 | UB5x16d | 4.875 | 16 | 0.125 |
| UG20417.5 | 2 | 4.375 | 17.5 | 13.11 | UB4x17.5d | 4.25 | 17.375 | 0.125 |
| UG203.509 | 2 | 3.5 | 9 | 5.51 | UB3.5x9d | 3.75 | 9.25 | 0.125 |
| UG1.903.215 | 1.875 | 3.125 | 15.125 | 12.01 | UB3.2x15d | 3.125 | 15.125 | 0.125 |
| UG1.80508.2 | 1.75 | 5 | 8.25 | 3.27 | UB4x8.2d | 5 | 8.25 | 0.125 |
| UG1.603.516.375 | 1.625 | 3.5 | 16.375 | 12.87 | UB5.5×18.1d | 5.5 | 18.125 | 0.125 |
| UG1.603.110 | 1.625 | 3.125 | 10 | 6.89 | UB3.1x10c | 3 | 9.875 | 0.125 |
| UG1.50633 | 1.5 | 5.875 | 33.25 | 27.52 | UB6x33c | 6 | 33.5 | 0.125 |
| UG1.50624 | 1.5 | 5.875 | 23.75 | 18.11 | UB6x24c | 5.875 | 24 | 0.125 |
| UG1.50629 | 1.5 | 5.75 | 28.75 | 23.11 | UB6x29c | 5.875 | 29 | 0.125 |
| UG1.50622 | 1.5 | 5.75 | 21.75 | 16.14 | UB6x22c | 5.875 | 22 | 0.125 |
| UG1.50620 | 1.5 | 5.75 | 19.75 | 14.02 | UB6x20c | 5.875 | 19.875 | 0.125 |
| UG1.50626 | 1.5 | 5.625 | 25.5 | 20 | UB6x26c | 5.75 | 25.75 | 0.125 |
| UG1.50618 | 1.5 | 5.625 | 17.5 | 12.01 | UB6x18c | 5.75 | 17.75 | 0.125 |
| UG1.50416 | 1.5 | 4.25 | 15.625 | 11.26 | UB4x16c | 4.375 | 15.875 | 0.125 |
| UG1.50422 | 1.5 | 4.125 | 21.625 | 17.52 | UB4x22c | 4.25 | 21.75 | 0.125 |
| UG1.50420 | 1.5 | 4.125 | 19.625 | 15.51 | UB4x20c | 4.25 | 19.75 | 0.125 |
| UG1.50418 | 1.5 | 4.125 | 17.5 | 13.5 | UB4x18c | 4.25 | 17.875 | 0.125 |
| UG1.50414 | 1.5 | 4.125 | 13.625 | 9.49 | UB4x14c | 4.25 | 13.875 | 0.125 |
| UG1.50426 | 1.5 | 3.875 | 25.875 | 22.13 | UB4x26c | 3.875 | 26 | 0.125 |
| UG1.503.506.5 | 1.5 | 3.5 | 6.5 | 2.99 | UB3.5×6.5c | 3.5 | 6.5 | 0.125 |
| UG1.50311 | 1.5 | 3.0625 | 10.875 | 7.8 | UB3x11c | 3.25 | 11.125 | 0.125 |
| UG1.50220 | 1.5 | 2.25 | 20.125 | 15.63 | UB2x20c | 4 | 22 | 0.125 |
| UG1.250611 | 1.25 | 5.875 | 10.875 | 5 | UB2.5×8.2c | 5.875 | 10.875 | 0.125 |
| UG1.250510 | 1.25 | 5.125 | 10.125 | 5.12 | UB5x10c | 5.25 | 10.25 | 0.125 |
| UG1.302.58.2 | 1.25 | 2.5 | 8.25 | 5.87 | UB3x8c | 2.625 | 8.375 | 0.125 |
| UG1.22.504 | 1.25 | 2.375 | 4 | 1.5 | UB2.5x4c | 2.5 | 3.875 | 0.125 |
| UG1.22.27.5 | 1.125 | 2.25 | 7.625 | 5.39 | UB2.2×7.5b | 2.125 | 7.5 | 0.125 |
| UG12.97.9 | 1 | 2.9375 | 7.9375 | 5 | UB2.9×7.9b | 2.9375 | 7.9375 | 0.125 |
| UG102.510.5 | 1 | 2.25 | 10.25 | 7.99 | UB2.5×10.5b | 2.25 | 10.375 | 0.125 |
| UG102.59.5 | 1 | 2.25 | 9.5 | 7.24 | UB2.5×9.5b | 2.625 | 9.5 | 0.125 |
