Standard Guards

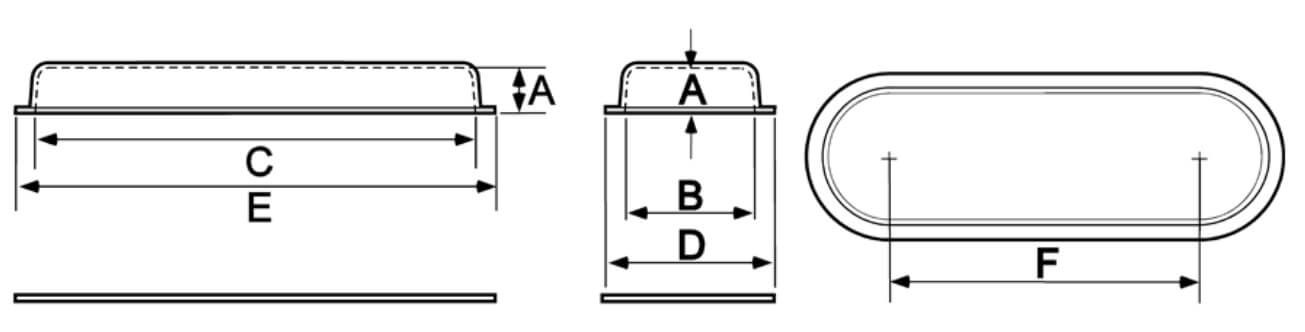

Our most popular type of machine guard is the standard flanged guard. Standard flanged guards cover belt or chain drives with similar sized sheaves or sprockets. The backplate covers the back of the guard, which can be attached to guards through holes or brackets made through the flange. If standard sized guards do not fit machinery, several guards may be re-sized to make a longer or shorter guard.
| Part # |
Center |
Height |
Length |
Width |
Backplate Part # | BP Width
|
BP Length
|
BP Thickness |
|---|---|---|---|---|---|---|---|---|
| G121946A | 27.01 | 12 | 46 | 19 | *B20x47x | 22.625 | 49.625 | 0.1875 |
| G10.51450 | 35.98 | 10.5 | 50 | 14 | *B15x51u | 16.75 | 52.75 | 0.1875 |
| G92048 | 27.99 | 9 | 48 | 20 | *B21x49r | 21 | 49 | 0.1875 |
| G70715 | 7.99 | 7 | 15 | 7 | B8x16n | 9.5 | 17.5 | 0.125 |
| G6.52263.5 | 41.5 | 6.5 | 63.5 | 22 | *B23x64.5m | 24 | 65 | 0.1875 |
| G62442 | 17.99 | 6 | 42 | 24 | *B25x43l | 27.5 | 45.5 | 0.1875 |
| G61935 | 16.14 | 6 | 35.25 | 19.125 | *B20x36l | 21.375 | 37.75 | 0.1875 |
| G61949 | 30 | 6 | 49 | 19 | *B20x50l | 22 | 52 | 0.1875 |
| G61649 | 32.99 | 6 | 49 | 16 | *B17x50l | 19 | 52 | 0.1875 |
| G61566 | 50.98 | 6 | 66 | 15 | *B16x67l | 18.25 | 69.25 | 0.1875 |
| G61554A | 39.02 | 6 | 54 | 15 | *B16x55l | 18.25 | 57.25 | 0.1875 |
| G61542A | 27.01 | 6 | 42 | 15 | *B16x43l | 18.25 | 45.25 | 0.1875 |
| G61530A | 15 | 6 | 30 | 15 | *B16x31l | 18.25 | 33.25 | 0.1875 |
| G61242 | 30 | 6 | 42 | 12 | *B13x43l | 14.25 | 44.25 | 0.1875 |
| G61025 | 15 | 6 | 25 | 10 | B11x26l | 11 | 26 | 0.125 |
| G61015 | 5 | 6 | 15 | 10 | B11x16l | 11 | 16 | 0.125 |
| G5.51630 | 14.02 | 5.5 | 29.875 | 15.875 | *B17x31k | 17.75 | 32.125 | 0.1875 |
| G5.51222 | 10 | 5.5 | 22 | 12 | *B13x23k | 14.25 | 24.25 | 0.1875 |
| G51341A | 27.99 | 5 | 41 | 13 | *B14x42j | 15.5 | 43.5 | 0.1875 |
| G51325 | 12.01 | 5 | 25 | 13 | *B14x26j | 15 | 27 | 0.1875 |
| G4.50933 | 24.49 | 4.5 | 33.625 | 9.125 | B10x34i | 11.25 | 35.625 | 0.125 |
| G4.50922 | 12.99 | 4.5 | 22 | 9 | B10x23i | 11 | 24 | 0.125 |
| G40722 | 15.12 | 4.25 | 22.25 | 7.125 | B8x23h | 9.125 | 24.25 | 0.125 |
| G408.531 | 22.52 | 4 | 31 | 8.5 | B9.5x32h | 11 | 32.5 | 0.125 |
| G408.528.5 | 20 | 4 | 28.5 | 8.5 | B9.5×29.5h | 11 | 30.25 | 0.125 |
| G40925 | 16.14 | 4 | 24.625 | 8.5 | B10x26h | 11 | 27 | 0.125 |
| G408.520.5 | 12.01 | 4 | 20.5 | 8.5 | B9.5×21.5h | 11 | 22.25 | 0.125 |
| G40616 | 10 | 4 | 16 | 6 | B7x17g | 8.5 | 18.5 | 0.125 |
| G40619 | 13.62 | 4 | 19 | 5.375 | B7x20h | 7.5 | 21.125 | 0.125 |
| G403.56.5 | 2.99 | 4 | 6.5 | 3.5 | B4.5×7.5h | 4.5 | 7.5 | 0.125 |
| G3.406.6827.93 | 21.26 | 3.4375 | 27.9375 | 6.6875 | B8x29g | 7.6875 | 28.9375 | 0.125 |
| G3.51027 | 17.36 | 3.5 | 27.125 | 9.75 | B11x28g | 11 | 28 | 0.125 |
| G3.50740 | 33.11 | 3.5 | 40.125 | 7 | B8x41g | 9 | 42 | 0.125 |
| G3.50712 | 5 | 3.5 | 11.875 | 6.875 | B8x13g | 8.75 | 13.75 | 0.125 |
| G3.50736 | 29.37 | 3.5 | 36.125 | 6.75 | B8x37g | 8.75 | 38.25 | 0.125 |
| G3.50732 | 25.39 | 3.5 | 32.125 | 6.75 | B8x33g | 8.75 | 34.125 | 0.125 |
| G3.50730 | 23.39 | 3.5 | 30.125 | 6.75 | B8x31g | 8.75 | 34.125 | 0.125 |
| G3.50727 | 20.39 | 3.5 | 27.125 | 6.75 | B8x28g | 8.625 | 29 | 0.125 |
| G3.50725 | 17.99 | 3.5 | 24.75 | 6.75 | B8x26g | 8.625 | 26.75 | 0.125 |
| G3.50724 | 17.36 | 3.5 | 24.125 | 6.75 | B8x25g | 8.75 | 26 | 0.125 |
| G3.50721 | 14.25 | 3.5 | 21 | 6.75 | B8x22g | 8.75 | 23 | 0.125 |
| G3.50718 | 11.26 | 3.5 | 18 | 6.75 | B8x19g | 8.75 | 19.875 | 0.125 |
| G3.56.817 | 10.24 | 3.5 | 17 | 6.75 | B7.5x18g | 7.75 | 18 | 0.125 |
| G3.50715 | 8.11 | 3.5 | 14.875 | 6.75 | B8x16g | 8.75 | 16.875 | 0.125 |
| G3.56.627.8 | 21.26 | 3.5 | 27.875 | 6.625 | B7.6×28.8g | 7.625 | 28.875 | 0.125 |
| G3.506.2527.5 | 21.26 | 3.5 | 27.5 | 6.25 | B7.25×28.5g | 7.25 | 28.5 | 0.125 |
| G3.50618.5 | 12.24 | 3.5 | 18.5 | 6.25 | B7x19.5g | 8.25 | 20.5 | 0.125 |
| G3.50419 | 15.12 | 3.5 | 18.875 | 3.75 | B5x20g | 5.625 | 20.875 | 0.125 |
| G3.254.618.6 | 14.02 | 3.25 | 18.625 | 4.625 | B6.6×20.6g | 6.625 | 20.625 | 0.125 |
| G3.2504.512.6 | 8.11 | 3.25 | 12.625 | 4.5 | B6.5×14.6g | 6.5 | 16.625 | 0.125 |
| G31237 | 25.24 | 3 | 37 | 11.75 | *B13x38f | 13.625 | 39 | 0.1875 |
| G31227 | 15.63 | 3 | 27.375 | 11.75 | *B13x28f | 12 | 27.5 | 0.1875 |
| G31034 | 24.37 | 3 | 34.25 | 9.875 | B11x35f | 11.75 | 36.125 | 0.125 |
| G31024 | 14.25 | 3 | 24.125 | 9.875 | B11x25f | 11.75 | 26 | 0.125 |
| G30823 | 15.12 | 3 | 23.25 | 8.125 | B9x24f | 9.875 | 25 | 0.125 |
| G30818 | 10 | 3 | 18 | 8 | B9x19f | 10 | 20 | 0.125 |
| G307.816.3 | 8.39 | 3 | 16.375 | 7.875 | B9.6×18.1f | 9.625 | 18.125 | 0.125 |
| G30721 | 13.5 | 3 | 20.75 | 7.25 | B8x22f | 9 | 22.5 | 0.125 |
| G30717 | 10 | 3 | 16.75 | 6.75 | B8x18f | 8.625 | 18.5 | 0.125 |
| G30525 | 19.49 | 3 | 25.1875 | 5.6875 | B6x26f | 7.4375 | 26.9375 | 0.125 |
| G30625 | 19.13 | 3 | 24.75 | 5.625 | B7x26f | 7.5 | 26.625 | 0.125 |
| G30622 | 15.98 | 3 | 21.625 | 5.625 | B7x23f | 7.5 | 23.5 | 0.125 |
| G305.521.5 | 16.5 | 3 | 21.5 | 5.5 | B6.5×22.5f | 6.5 | 22.5 | 0.125 |
| G30522 | 16.93 | 3 | 22.375 | 5.4375 | B6x23f | 7.125 | 24.125 | 0.125 |
| G30526 | 20.98 | 3 | 26.375 | 5.375 | B6x27f | 7.125 | 28.125 | 0.125 |
| G30519 | 14.02 | 3 | 19.375 | 5.375 | B6x20f | 7.125 | 21.125 | 0.125 |
| G30517 | 11.93 | 3 | 17.3125 | 5.375 | B6x18f | 7.125 | 19 | 0.125 |
| G30523.5 | 17.76 | 3 | 23 | 5.25 | B6x24.5f | 7 | 24.75 | 0.125 |
| G3.75.213 | 7.68 | 3 | 12.9375 | 5.25 | B5.25×12.9f | 6.25 | 13.9375 | 0.125 |
| G30510 | 5.12 | 3 | 10.125 | 5 | B6x11f | 7 | 12 | 0.125 |
| G30518 | 12.99 | 3 | 17.75 | 4.75 | B6x19f | 6.75 | 19.75 | 0.125 |
| G304.212 | 7.64 | 3 | 11.875 | 4.25 | B5.2x13f | 6.125 | 13.75 | 0.125 |
| G30429 | 25 | 3 | 29 | 4 | B5x30f | 5.75 | 30.75 | 0.125 |
| G2.50825 | 17.24 | 2.5 | 25 | 7.75 | B9x26e | 9.625 | 27 | 0.125 |
| G2.50625 | 19.13 | 2.5 | 25 | 5.875 | B7x26e | 7.75 | 26.5 | 0.125 |
| G2.50620 | 14.02 | 2.5 | 19.75 | 5.75 | B7x21e | 7.5 | 21.625 | 0.125 |
| G2.50615 | 9.02 | 2.5 | 14.75 | 5.75 | B7x16e | 7.5 | 16.5 | 0.125 |
| G2.50612 | 5.98 | 2.5 | 11.625 | 5.625 | B7x13e | 7.5 | 13.5 | 0.125 |
| G2.50509 | 4.13 | 2.5 | 9 | 4.875 | B6x10e | 6.75 | 10.875 | 0.125 |
| G2.50516 | 11.14 | 2.5 | 15.75 | 4.625 | B6x17e | 6.5 | 17.625 | 0.125 |
| G2.50417.5 | 13.11 | 2.5 | 17.5 | 4.375 | B5x18.5e | 6.625 | 19.875 | 0.125 |
| G2.53.509 | 5.51 | 2.5 | 9 | 3.5 | B4.5x10e | 3.75 | 9.25 | 0.125 |
| G2.303.215 | 12.01 | 2.375 | 15.125 | 3.125 | B4.2x16d | 5.125 | 17.125 | 0.125 |
| G2.20508.2 | 3.27 | 2.25 | 8.25 | 5 | B6x9.2d | 7 | 10.25 | 0.125 |
| G2.103.516.375 | 12.87 | 2.125 | 16.375 | 3.5 | B5.5×18.1d | 5.5 | 18.125 | 0.125 |
| G2.103.110 | 6.89 | 2.125 | 10 | 3.125 | B4.1x11d | 4.875 | 11.75 | 0.125 |
| G20633 | 27.36 | 2 | 33.25 | 5.875 | B7x34d | 7.625 | 35.125 | 0.125 |
| G20624 | 17.87 | 2 | 23.75 | 5.875 | B7x25d | 7.5 | 25.625 | 0.125 |
| G20629 | 22.99 | 2 | 28.75 | 5.75 | B7x30d | 7.5 | 30.625 | 0.125 |
| G20622 | 15.98 | 2 | 21.75 | 5.75 | B7x23d | 7.5 | 23.625 | 0.125 |
| G20620 | 14.02 | 2 | 19.75 | 5.75 | B7x21d | 7.5 | 21.5 | 0.125 |
| G20626 | 19.88 | 2 | 25.5 | 5.625 | B7x27d | 7.375 | 27.375 | 0.125 |
| G20618 | 11.89 | 2 | 17.5 | 5.625 | B7x19d | 7.375 | 19.375 | 0.125 |
| G20416 | 11.38 | 2 | 15.625 | 4.25 | B5x17d | 6 | 17.5 | 0.125 |
| G20422 | 17.52 | 2 | 21.625 | 4.125 | B5x23d | 7.375 | 23.375 | 0.125 |
| G20420 | 15.51 | 2 | 19.625 | 4.125 | B5x21d | 5.875 | 21.375 | 0.125 |
| G20418 | 13.39 | 2 | 17.5 | 4.125 | B5x19d | 5.875 | 19.5 | 0.125 |
| G20414 | 9.49 | 2 | 13.625 | 4.125 | B5x15d | 6.4375 | 16 | 0.125 |
| G20426 | 22.01 | 2 | 25.875 | 3.875 | B5x27d | 5.5 | 27.625 | 0.125 |
| G203.506.5 | 2.99 | 2 | 6.5 | 3.5 | B4.5×7.5d | 5 | 8 | 0.125 |
| G20311 | 7.95 | 2 | 10.9375 | 3 | B4x12d | 4.75 | 12.5 | 0.125 |
| G20220 | 17.87 | 2 | 20.125 | 2.25 | B3x21d | 4 | 22 | 0.125 |
| G1.750611 | 5 | 1.75 | 10.875 | 5.875 | B7x12d | 7.5 | 12.5 | 0.125 |
| G1.750510 | 5 | 1.75 | 10.125 | 5.125 | B6x11d | 6.875 | 12 | 0.125 |
| G1.802.58.2 | 5.75 | 1.75 | 8.25 | 2.5 | B3.5×9.2d | 4 | 10 | 0.125 |
| G1.72.504 | 1.61 | 1.75 | 4 | 2.375 | B3.5x5d | 4.125 | 5.625 | 0.125 |
| G1.65.213.2 | 7.99 | 1.625 | 13.25 | 5.25 | B6.2×14.2c | 6.25 | 14.25 | 0.125 |
| G1.72.27.5 | 5.39 | 1.625 | 7.625 | 2.25 | B3.2×8.5c | 3.75 | 9.125 | 0.125 |
| G1.53.511 | 7.76 | 1.5625 | 11.1875 | 3.4375 | B4.5x12c | 5 | 12.75 | 0.125 |
| G1.52.97.9 | 5 | 1.5 | 7.9375 | 2.9375 | B2.9×7.9b | 2.9375 | 7.9375 | 0.125 |
| G1.52.510.5 | 7.99 | 1.5 | 10.25 | 2.25 | B3.5×11.5c | 3.875 | 12 | 0.125 |
| G1.52.59.5 | 7.24 | 1.5 | 9.5 | 2.25 | B3.5×10.5c | 4.25 | 11.125 | 0.125 |
