Standard Flanged Guards

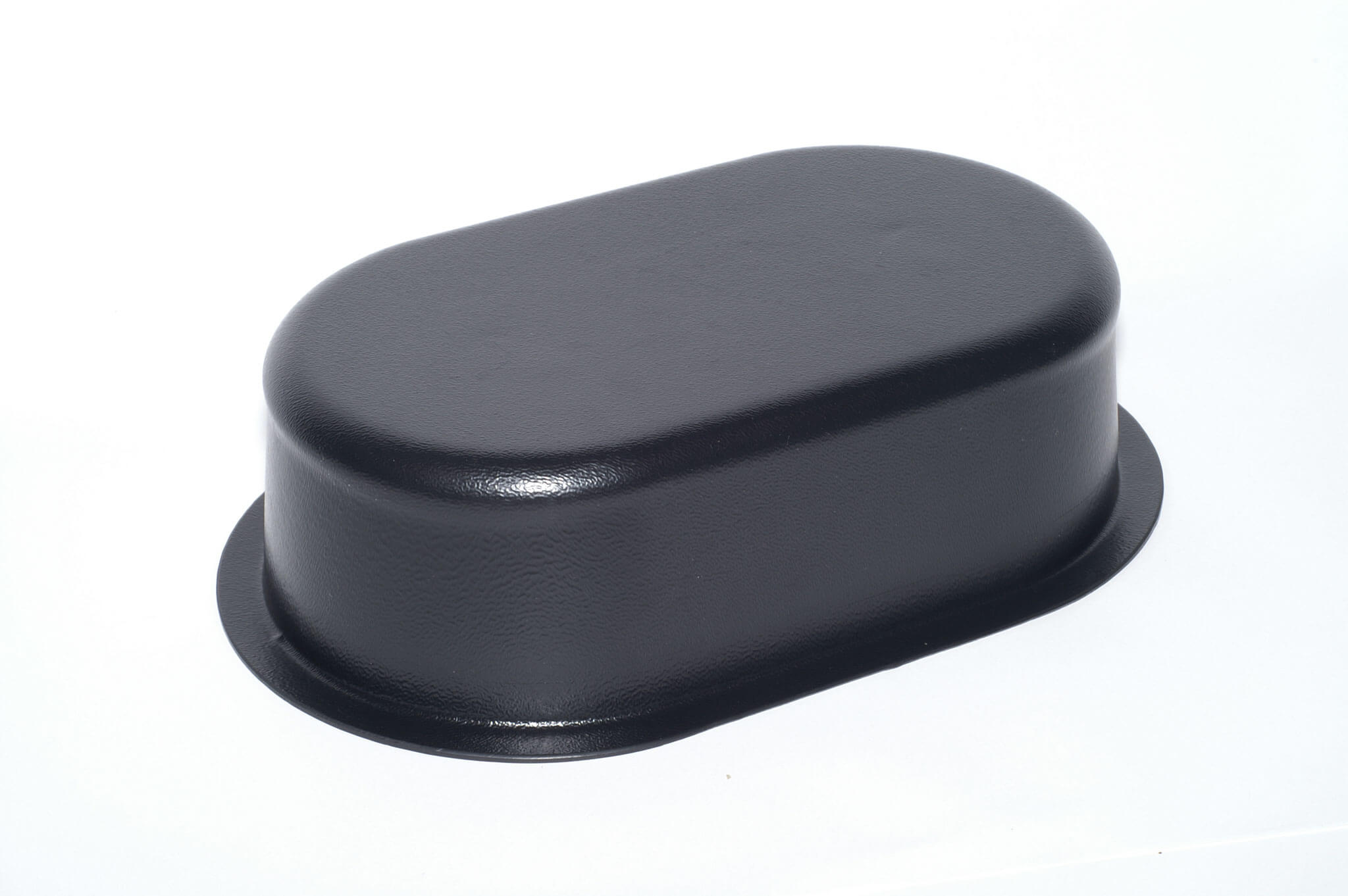

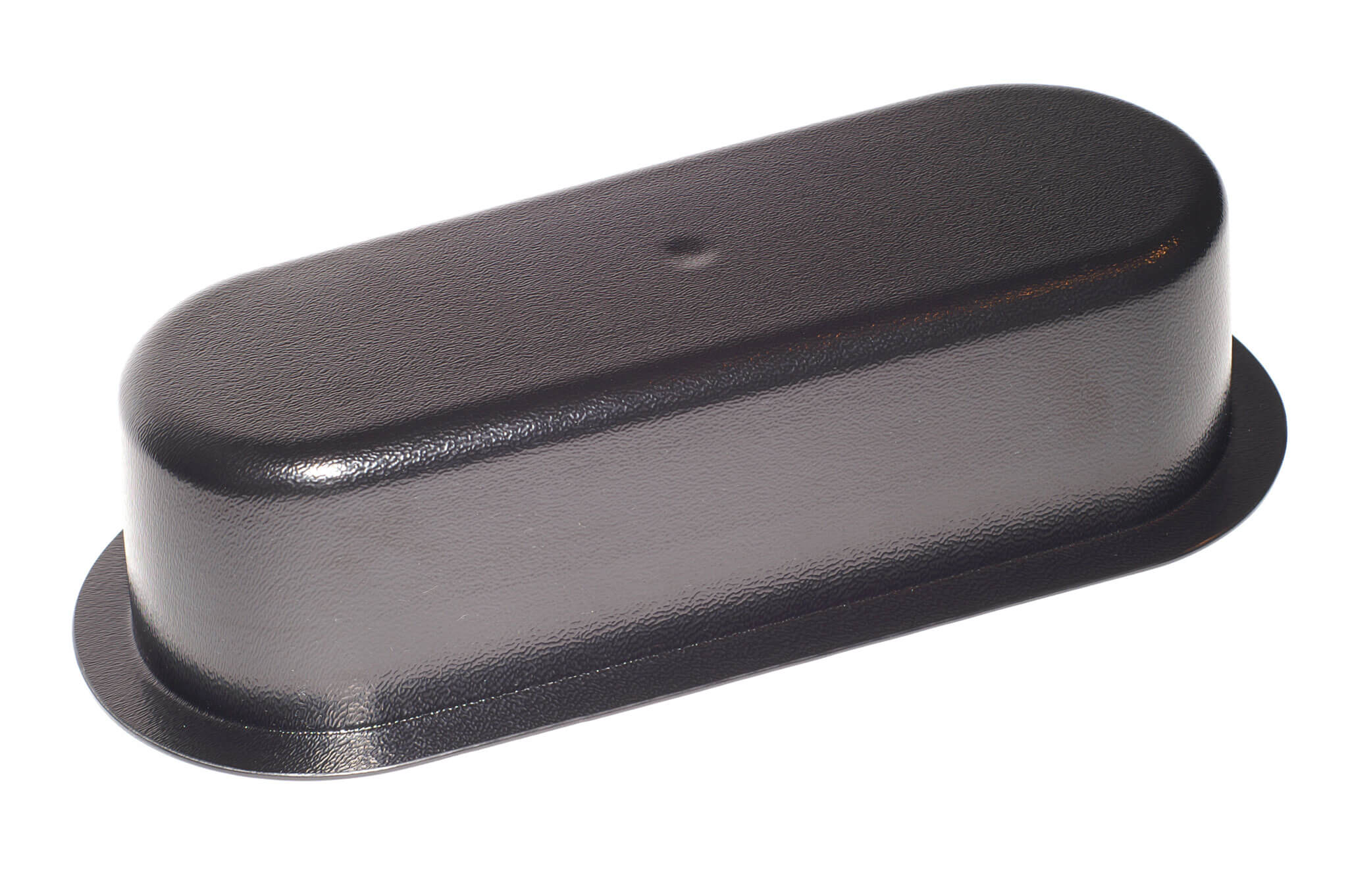

Our most popular type of machine guard is the standard flanged guard. Standard flanged guards cover belt or chain drives with similar sized sheaves or sprockets.

The backplate covers the back of the guard, which can be attached to guards through holes or brackets made through the flange.

If standard sized guards do not fit machinery, several guards may be re-sized to make a longer or shorter guard.

Note: MGC normal manufacturing policy does not include cutting holes for shafts or making brackets for mounting. This can be done on special orders.

Part Number	Height "A"	Width "B"	Length "C"	Center "F"	Backplate Part Number	Width "D"	Length "E"	Standard Material Thickness

G1.52.59.5	1 1/2	2 1/4	9 1/2	7 1/4	B3.5x10.5c	4 1/4	11 1/8	1/8
G1.52.510.5	1 1/2	2 1/4	10 1/4	8	B3.5x11.5c	3 7/8	12	1/8
G1.52.97.9	1 1/2	2 15/16	7 15/16	5	B2.9x7.9b	2 15/16	7 15/16	1/8
G1.53.511	1 9/16	3 7/16	11 3/16	7 3/4	B4.5x12c	5	12 3/4	1/8
G1.72.27.5	1 5/8	2 1/4	7 5/8	5 3/8	B3.2x8.5c	3 3/4	9 1/8	1/8
G1.65.213.2	1 5/8	5 1/4	13 1/4	8	B6.2x14.2c	6 1/4	14 1/4	1/8
G1.72.504	1 3/4	2 3/8	4	1 5/8	B3.5x5d	4 1/8	5 5/8	1/8
G1.802.58.2	1 3/4	2 1/2	8 1/4	5 3/4	B3.5x9.2d	4	10	1/8
G1.750510	1 3/4	5 1/8	10 1/8	5	B6x11d	6 7/8	12	1/8
G1.750611	1 3/4	5 7/8	10 7/8	5	B7x12d	7 1/2	12 1/2	1/8
G20220	2	2 1/4	20 1/8	17 7/8	B3x21d	4	22	1/8
G20311	2	3	10 15/16	7 15/16	B4x12d	4 3/4	12 1/2	1/8
G203.506.5	2	3 1/2	6 1/2	3	B4.5x7.5d	5	8	1/8
G20426	2	3 7/8	25 7/8	22	B5x27d	5 1/2	27 5/8	1/8
G20414	2	4 1/8	13 5/8	9 1/2	B5x15d	6 7/16	16	1/8
G20418	2	4 1/8	17 1/2	13 3/8	B5x19d	5 7/8	19 1/2	1/8
G20420	2	4 1/8	19 5/8	15 1/2	B5x21d	5 7/8	21 3/8	1/8
G20422	2	4 1/8	21 5/8	17 1/2	B5x23d	7 3/8	23 3/8	1/8
G20416	2	4 1/4	15 5/8	11 3/8	B5x17d	6	17 1/2	1/8
G20618	2	5 5/8	17 1/2	11 7/8	B7x19d	7 3/8	19 3/8	1/8
G20626	2	5 5/8	25 1/2	19 7/8	B7x27d	7 3/8	27 3/8	1/8
G20620	2	5 3/4	19 3/4	14	B7x21d	7 1/2	21 1/2	1/8
G20622	2	5 3/4	21 3/4	16	B7x23d	7 1/2	23 5/8	1/8
G20629	2	5 3/4	28 3/4	23	B7x30d	7 1/2	30 5/8	1/8
G20624	2	5 7/8	23 3/4	17 7/8	B7x25d	7 1/2	25 5/8	1/8
G20633	2	5 7/8	33 1/4	27 3/8	B7x34d	7 5/8	35 1/8	1/8
G2.103.110	2 1/8	3 1/8	10	6 7/8	B4.1x11d	4 7/8	11 3/4	1/8
G2.103.516.375	2 1/8	3 1/2	16 3/8	12 7/8	B5.5x18.1d	5 1/2	18 1/8	1/8
G2.20508.2	2 1/4	5	8 1/4	3 1/4	B6x9.2d	7	10 1/4	1/8
G2.303.215	2 3/8	3 1/8	15 1/8	12	B4.2x16d	5 1/8	17 1/8	1/8
G2.53.509	2 1/2	3 1/2	9	5 1/2	B4.5x10e	3 3/4	9 1/4	1/8
G2.50417.5	2 1/2	4 3/8	17 1/2	13 1/8	B5x18.5e	6 5/8	19 7/8	1/8
G2.50516	2 1/2	4 5/8	15 3/4	11 1/8	B6x17e	6 1/2	17 5/8	1/8
G2.50509	2 1/2	4 7/8	9	4 1/8	B6x10e	6 3/4	10 7/8	1/8
G2.50612	2 1/2	5 5/8	11 5/8	6	B7x13e	7 1/2	13 1/2	1/8
G2.50615	2 1/2	5 3/4	14 3/4	9	B7x16e	7 1/2	16 1/2	1/8
G2.50620	2 1/2	5 3/4	19 3/4	14	B7x21e	7 1/2	21 5/8	1/8
G2.50625	2 1/2	5 7/8	25	19 1/8	B7x26e	7 3/4	26 1/2	1/8
G2.50825	2 1/2	7 3/4	25	17 1/4	B9x26e	9 5/8	27	1/8
G30429	3	4	29	25	B5x30f	5 3/4	30 3/4	1/8
G304.212	3	4 1/4	11 7/8	7 5/8	B5.2x13f	6 1/8	13 3/4	1/8
G30518	3	4 3/4	17 3/4	13	B6x19f	6 3/4	19 3/4	1/8
G30510	3	5	10 1/8	5 1/8	B6x11f	7	12	1/8
G3.75.213	3	5 1/4	12 15/16	7 11/16	B5.25x12.9f	6 1/4	13 15/16	1/8
G30523.5	3	5 1/4	23	17 3/4	B6x24.5f	7	24 3/4	1/8
G30517	3	5 3/8	17 5/16	11 15/16	B6x18f	7 1/8	19	1/8
G30519	3	5 3/8	19 3/8	14	B6x20f	7 1/8	21 1/8	1/8
G30526	3	5 3/8	26 3/8	21	B6x27f	7 1/8	28 1/8	1/8
G30522	3	5 7/16	22 3/8	16 15/16	B6x23f	7 1/8	24 1/8	1/8
G305.521.5	3	5 1/2	21 1/2	16 1/2	B6.5x22.5f	6 1/2	22 1/2	1/8
G30622	3	5 5/8	21 5/8	16	B7x23f	7 1/2	23 1/2	1/8
G30625	3	5 5/8	24 3/4	19 1/8	B7x26f	7 1/2	26 5/8	1/8
G30525	3	5 11/16	25 3/16	19 1/2	B6x26f	7 7/16	26 15/16	1/8
G30717	3	6 3/4	16 3/4	10	B8x18f	8 5/8	18 1/2	1/8
G30721	3	7 1/4	20 3/4	13 1/2	B8x22f	9	22 1/2	1/8
G307.816.3	3	7 7/8	16 3/8	8 3/8	B9.6x18.1f	9 5/8	18 1/8	1/8
G30818	3	8	18	10	B9x19f	10	20	1/8
G30823	3	8 1/8	23 1/4	15 1/8	B9x24f	9 7/8	25	1/8
G31024	3	9 7/8	24 1/8	14 1/4	B11x25f	11 3/4	26	1/8
G31034	3	9 7/8	34 1/4	24 3/8	B11x35f	11 3/4	36 1/8	1/8
G31227	3	11 3/4	27 3/8	15 5/8	*B13x28f	12	27 1/2	3/16
G31237	3	11 3/4	37	25 1/4	*B13x38f	13 5/8	39	3/16
G3.2504.512.6	3 1/4	4 1/2	12 5/8	8 1/8	B6.5x14.6g	6 1/2	16 5/8	1/8
G3.254.618.6	3 1/4	4 5/8	18 5/8	14	B6.6x20.6g	6 5/8	20 5/8	1/8
G3.50419	3 1/2	3 3/4	18 7/8	15 1/8	B5x20g	5 5/8	20 7/8	1/8
G3.50618.5	3 1/2	6 1/4	18 1/2	12 1/4	B7x19.5g	8 1/4	20 1/2	1/8
G3.506.2527.5	3 1/2	6 1/4	27 1/2	21 1/4	B7.25x28.5g	7 1/4	28 1/2	1/8
G3.56.627.8	3 1/2	6 5/8	27 7/8	21 1/4	B7.6x28.8g	7 5/8	28 7/8	1/8
G3.50715	3 1/2	6 3/4	14 7/8	8 1/8	B8x16g	8 3/4	16 7/8	1/8
G3.56.817	3 1/2	6 3/4	17	10 1/4	B7.5x18g	7 3/4	18	1/8
G3.50718	3 1/2	6 3/4	18	11 1/4	B8x19g	8 3/4	19 7/8	1/8
G3.50721	3 1/2	6 3/4	21	14 1/4	B8x22g	8 3/4	23	1/8
G3.50724	3 1/2	6 3/4	24 1/8	17 3/8	B8x25g	8 3/4	26	1/8
G3.50725	3 1/2	6 3/4	24 3/4	18	B8x26g	8 5/8	26 3/4	1/8
G3.50727	3 1/2	6 3/4	27 1/8	20 3/8	B8x28g	8 5/8	29	1/8
G3.50730	3 1/2	6 3/4	30 1/8	23 3/8	B8x31g	8 3/4	34 1/8	1/8
G3.50732	3 1/2	6 3/4	32 1/8	25 3/8	B8x33g	8 3/4	34 1/8	1/8
G3.50736	3 1/2	6 3/4	36 1/8	29 3/8	B8x37g	8 3/4	38 1/4	1/8
G3.50712	3 1/2	6 7/8	11 7/8	5	B8x13g	8 3/4	13 3/4	1/8
G3.50740	3 1/2	7	40 1/8	33 1/8	B8x41g	9	42	1/8
G3.51027	3 1/2	9 3/4	27 1/8	17 3/8	B11x28g	11	28	1/8
G403.56.5	4	3 1/2	6 1/2	3	B4.5x7.5h	4 1/2	7 1/2	1/8
G40619	4	5 3/8	19	13 5/8	B7x20h	7 1/2	21 1/8	1/8
G40616	4	6	16	10	B7x17g	8 1/2	18 1/2	1/8
G408.520.5	4	8 1/2	20 1/2	12	B9.5x21.5h	11	22 1/4	1/8
G40925	4	8 1/2	24 5/8	16 1/8	B10x26h	11	27	1/8
G408.528.5	4	8 1/2	28 1/2	20	B9.5x29.5h	11	30 1/4	1/8
G408.531	4	8 1/2	31	22 1/2	B9.5x32h	11	32 1/2	1/8
G40722	4 1/4	7 1/8	22 1/4	15 1/8	B8x23h	9 1/8	24 1/4	1/8
G4.50922	4 1/2	9	22	13	B10x23i	11	24	1/8
G4.50933	4 1/2	9 1/8	33 5/8	24 1/2	B10x34i	11 1/4	35 5/8	1/8
G51325	5	13	25	12	*B14x26j	15	27	3/16
G51341	5	13	41	28	*B14x42j	15 1/2	43 1/2	3/16
G5.51222	5 1/2	12	22	10	*B13x23k	14 1/4	24 1/4	3/16
G5.51630	5 1/2	15 7/8	29 7/8	14	*B17x31k	17 3/4	32 1/8	3/16
G61015	6	10	15	5	B11x16l			1/8
G61025	6	10	25	15	B11x26l	11	26	1/8
G61242	6	12	42	30	*B13x43l	14 1/4	44 1/4	3/16
G61530	6	15	30	15	*B16x31l	18 1/4	33 1/4	3/16
G61542	6	15	42	27	*B16x43l	18 1/4	45 1/4	3/16
G61554	6	15	54	39	*B16x55l	18 1/4	57 1/4	3/16
G61566	6	15	66	51	*B16x67l	18 1/4	69 1/4	3/16
G61649	6	16	49	33	*B17x50l	19	52	3/16
G61949	6	19	49	30	*B20x50l	22	52	3/16
G61935	6	19 1/8	35 1/4	16 1/8	*B20x36l	21 3/8	37 3/4	3/16
G62442	6	24	42	18	*B25x43l	27 1/2	45 1/2	3/16
G6.52263.5	6 1/2	22	63 1/2	41 1/2	*B23x64.5m	24	65	3/16
G70715	7	7	15	8	B8x16n	9 1/2	17 1/2	1/8
G92048	9	20	48	28	*B21x49r	21	49	3/16
G10.51450	10 1/2	14	50	36	*B15x51u	16 3/4	52 3/4	3/16
G121946	12	19	46	27	*B20x47x	22 5/8	49 5/8	3/16

Part Number	Height "A"	Width "B"	Length "C"	Center "F"	Backplate Part Number	Width "D"	Length "E"	Standard Material Thickness

G1.52.59.5	38	57	241	184	B3.5x10.5c	108	283	3.17
G1.52.510.5	38	57	260	203	B3.5x11.5c	98	305	3.17
G1.52.97.9	38	75	202	127	B2.9x7.9b	75	202	3.17
G1.53.511	40	87	284	197	B4.5x12c	127	324	3.17
G1.72.27.5	41	57	194	137	B3.2x8.5c	95	232	3.17
G1.65.213.2	41	133	337	203	B6.2x14.2c	159	362	3.17
G1.72.504	44	60	102	41	B3.5x5d	105	143	3.17
G1.802.58.2	44	64	210	146	B3.5x9.2d	102	254	3.17
G1.750510	44	130	257	127	B6x11d	175	305	3.17
G1.750611	44	149	276	127	B7x12d	191	318	3.17
G20220	51	57	511	454	B3x21d	102	559	3.17
G20311	51	76	278	202	B4x12d	121	318	3.17
G203.506.5	51	89	165	76	B4.5x7.5d	127	203	3.17
G20426	51	98	657	559	B5x27d	140	702	3.17
G20414	51	105	346	241	B5x15d	164	406	3.17
G20418	51	105	445	340	B5x19d	149	495	3.17
G20420	51	105	498	394	B5x21d	149	543	3.17
G20422	51	105	549	445	B5x23d	187	594	3.17
G20416	51	108	397	289	B5x17d	152	445	3.17
G20618	51	143	445	302	B7x19d	187	492	3.17
G20626	51	143	648	505	B7x27d	187	695	3.17
G20620	51	146	502	356	B7x21d	191	546	3.17
G20622	51	146	552	406	B7x23d	191	600	3.17
G20629	51	146	730	584	B7x30d	191	778	3.17
G20624	51	149	603	454	B7x25d	191	651	3.17
G20633	51	149	845	695	B7x34d	194	892	3.17
G2.103.110	54	79	254	175	B4.1x11d	124	298	3.17
G2.103.516.375	54	89	416	327	B5.5x18.1d	140	460	3.17
G2.20508.2	57	127	210	83	B6x9.2d	178	260	3.17
G2.303.215	60	79	384	305	B4.2x16d	130	435	3.17
G2.53.509	64	89	229	140	B4.5x10e	95	235	3.17
G2.50417.5	64	111	445	333	B5x18.5e	168	505	3.17
G2.50516	64	117	400	283	B6x17e	165	448	3.17
G2.50509	64	124	229	105	B6x10e	171	276	3.17
G2.50612	64	143	295	152	B7x13e	191	343	3.17
G2.50615	64	146	375	229	B7x16e	191	419	3.17
G2.50620	64	146	502	356	B7x21e	191	549	3.17
G2.50625	64	149	635	486	B7x26e	197	673	3.17
G2.50825	64	197	635	438	B9x26e	244	686	3.17
G30429	76	102	737	635	B5x30f	146	781	3.17
G304.212	76	108	302	194	B5.2x13f	156	349	3.17
G30518	76	121	451	330	B6x19f	171	502	3.17
G30510	76	127	257	130	B6x11f	178	305	3.17
G3.75.213	76	133	329	195	B5.25x12.9f	159	354	3.17
G30523.5	76	133	584	451	B6x24.5f	178	629	3.17
G30517	76	137	440	303	B6x18f	181	483	3.17
G30519	76	137	492	356	B6x20f	181	537	3.17
G30526	76	137	670	533	B6x27f	181	714	3.17
G30522	76	138	568	430	B6x23f	181	613	3.17
G305.521.5	76	140	546	419	B6.5x22.5f	165	572	3.17
G30622	76	143	549	406	B7x23f	191	597	3.17
G30625	76	143	629	486	B7x26f	191	676	3.17
G30525	76	144	640	495	B6x26f	189	684	3.17
G30717	76	171	425	254	B8x18f	219	470	3.17
G30721	76	184	527	343	B8x22f	229	572	3.17
G307.816.3	76	200	416	213	B9.6x18.1f	244	460	3.17
G30818	76	203	457	254	B9x19f	254	508	3.17
G30823	76	206	591	384	B9x24f	251	635	3.17
G31024	76	251	613	362	B11x25f	298	660	3.17
G31034	76	251	870	619	B11x35f	298	918	3.17
G31227	76	298	695	397	*B13x28f	305	699	4.76
G31237	76	298	940	641	*B13x38f	346	991	4.76
G3.2504.512.6	83	114	321	206	B6.5x14.6g	165	422	3.17
G3.254.618.6	83	117	473	356	B6.6x20.6g	168	524	3.17
G3.50419	89	95	479	384	B5x20g	143	530	3.17
G3.50618.5	89	159	470	311	B7x19.5g	210	521	3.17
G3.506.2527.5	89	159	699	540	B7.25x28.5g	184	724	3.17
G3.56.627.8	89	168	708	540	B7.6x28.8g	194	733	3.17
G3.50715	89	171	378	206	B8x16g	222	429	3.17
G3.56.817	89	171	432	260	B7.5x18g	197	457	3.17
G3.50718	89	171	457	286	B8x19g	222	505	3.17
G3.50721	89	171	533	362	B8x22g	222	584	3.17
G3.50724	89	171	613	441	B8x25g	222	660	3.17
G3.50725	89	171	629	457	B8x26g	219	679	3.17
G3.50727	89	171	689	518	B8x28g	219	737	3.17
G3.50730	89	171	765	594	B8x31g	222	867	3.17
G3.50732	89	171	816	645	B8x33g	222	867	3.17
G3.50736	89	171	918	746	B8x37g	222	972	3.17
G3.50712	89	175	302	127	B8x13g	222	349	3.17
G3.50740	89	178	1019	841	B8x41g	229	1067	3.17
G3.51027	89	248	689	441	B11x28g	279	711	3.17
G403.56.5	102	89	165	76	B4.5x7.5h	114	191	3.17
G40619	102	137	483	346	B7x20h	191	537	3.17
G40616	102	152	406	254	B7x17g	216	470	3.17
G408.520.5	102	216	521	305	B9.5x21.5h	279	565	3.17
G40925	102	216	625	410	B10x26h	279	686	3.17
G408.528.5	102	216	724	508	B9.5x29.5h	279	768	3.17
G408.531	102	216	787	572	B9.5x32h	279	826	3.17
G40722	108	181	565	384	B8x23h	232	616	3.17
G4.50922	114	229	559	330	B10x23i	279	610	3.17
G4.50933	114	232	854	622	B10x34i	286	905	3.17
G51325	127	330	635	305	*B14x26j	381	686	4.76
G51341	127	330	1041	711	*B14x42j	394	1105	4.76
G5.51222	140	305	559	254	*B13x23k	362	616	4.76
G5.51630	140	403	759	356	*B17x31k	451	816	4.76
G61015	152	254	381	127	B11x16l	279	406	3.17
G61025	152	254	635	381	B11x26l	279	660	3.17
G61242	152	305	1067	762	*B13x43l	362	1124	4.76
G61530	152	381	762	381	*B16x31l	464	845	4.76
G61542	152	381	1067	686	*B16x43l	464	1149	4.76
G61554	152	381	1372	991	*B16x55l	464	1454	4.76
G61566	152	381	1676	1295	*B16x67l	464	1759	4.76
G61649	152	406	1245	838	*B17x50l	483	1321	4.76
G61949	152	483	1245	762	*B20x50l	559	1321	4.76
G61935	152	486	895	410	*B20x36l	543	959	4.76
G62442	152	610	1067	457	*B25x43l	699	1156	4.76
G6.52263.5	165	559	1613	1054	*B23x64.5m	610	1651	4.76
G70715	178	178	381	203	B8x16n	241	445	3.17
G92048	229	508	1219	711	*B21x49r	533	1245	4.76
G10.51450	267	356	1270	914	*B15x51u	425	1340	4.76
G121946	305	483	1168	686	*B20x47x	575	1260	4.76

* To provide additional strength, these backplates are made from 3/16″ material. When made of black or yellow ABS, backplates are normally 1/8″.

Navigation

Standard Flanged Guards

Machine Guard & Cover Co.

Subscribe to Our Newsletter
