Rectangular Unflanged Guards

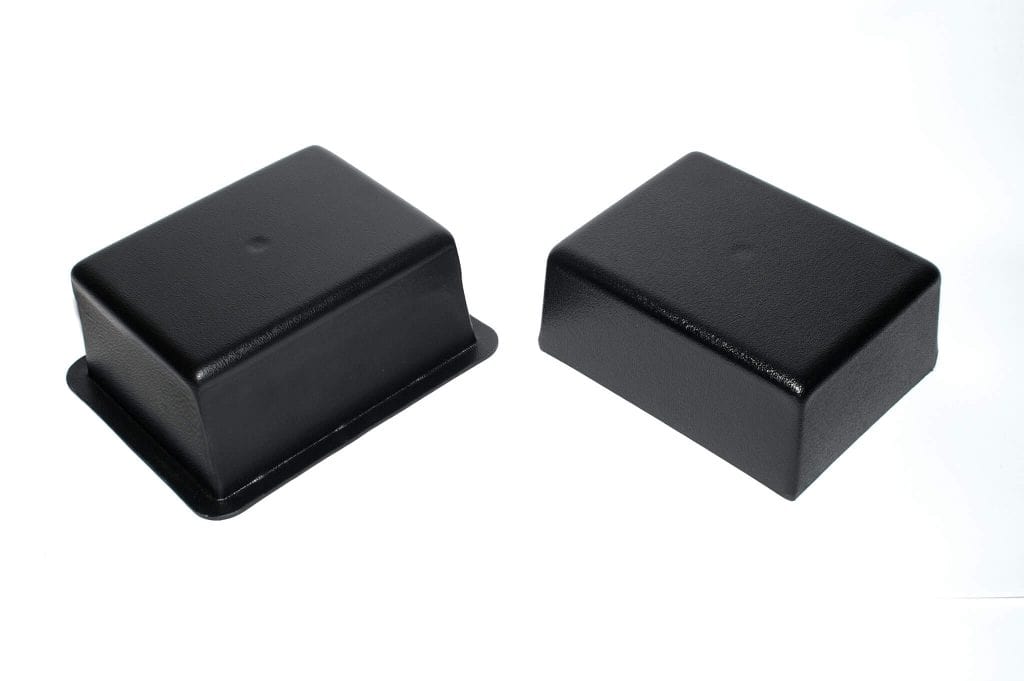

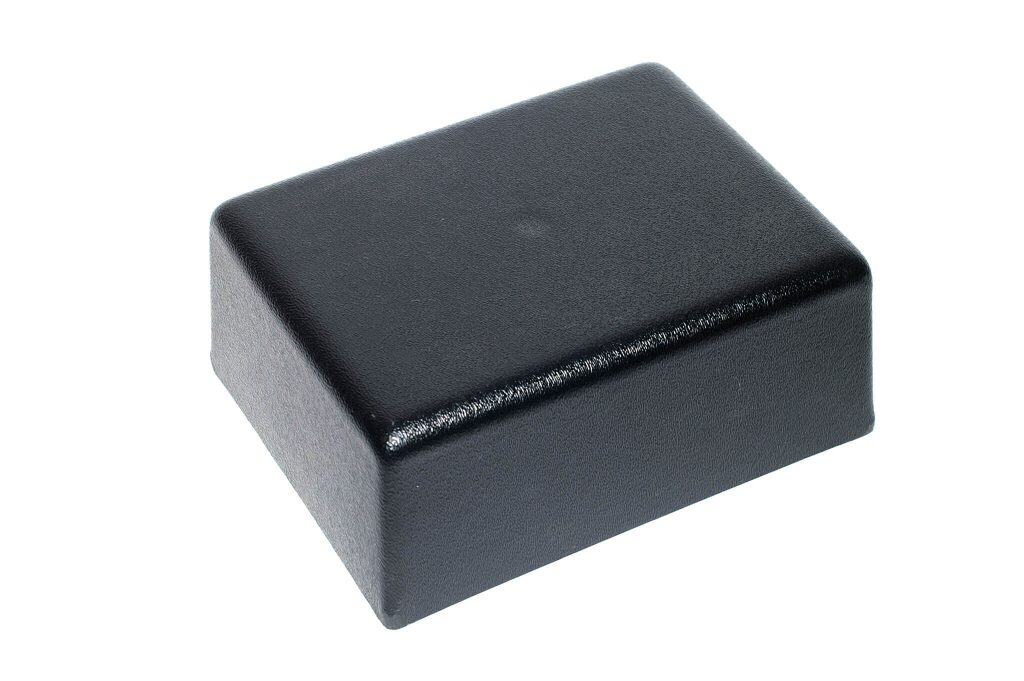

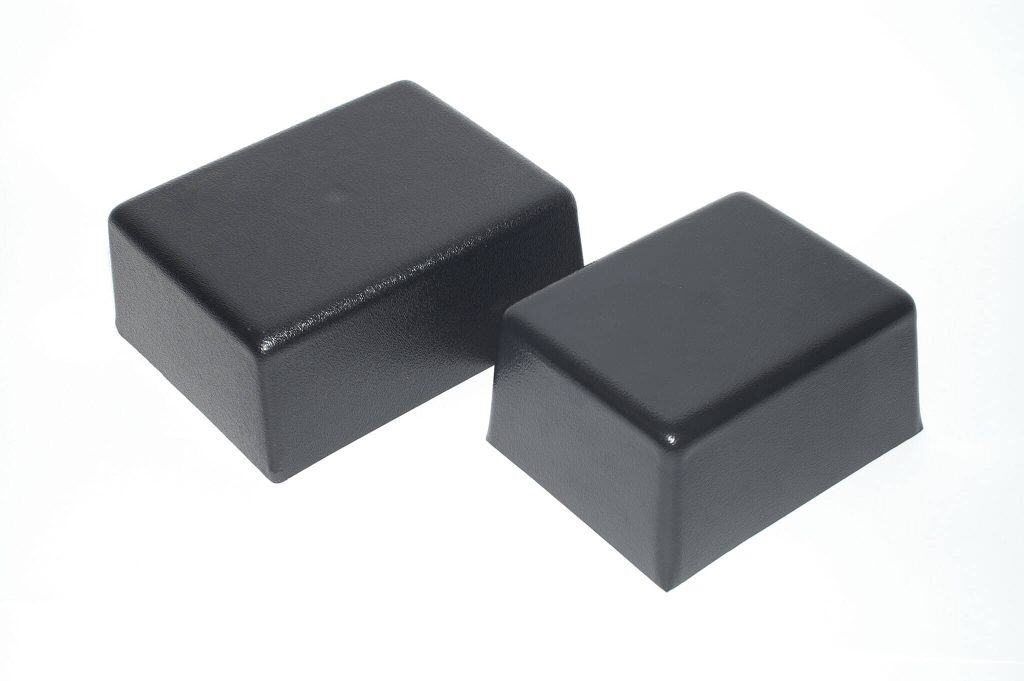

Rectangular unflanged guards cover a variety of drives, sheaves, sprockets and other moving machine parts.
A tabbed backplate covers the back of the machine guard. Unflanged guards are mounted through the side of the guard and the tabs of the backplate, with extruded u-nuts that ensure fastening metal-to-metal.
If standard sized guards do not fit machinery, several guards may be re-sized to make a longer or shorter guard.
Additional custom sizes can be easily fabricated. Call our office for more details on fabricated boxes.
| Part # |
Height A |
Width B |
Length C |
Backplate Part # | BP Width
D |
BP Length
E |
BP Thickness |
|---|---|---|---|---|---|---|---|
| URG9.51822 | 9.5 | 17.75 | 21.75 | *URB18x22s | 19 | 23 | 0.1875 |
| URG82752 | 8 | 26.75 | 51.75 | *URB27x52p | 28 | 52.75 | 0.1875 |
| URG6.751822 | 6.75 | 18.25 | 22 | *URB18x22n | 19.25 | 23.25 | 0.1875 |
| URG6.08.513 | 6 | 8.5 | 13.125 | URB8.5x13l | 9.5 | 14.625 | 0.125 |
| URG5.51419 | 5.5 | 14 | 19 | *URB14x19k | 15 | 20 | 0.1875 |
| URG50522 | 4.75 | 5.25 | 21.75 | URB5x22j | 6 | 22.5 | 0.125 |
| URG4.50619 | 4.5 | 5.5 | 18.5 | URB6x19i | 6 | 19 | 0.125 |
| URG4.50609 | 4.5 | 6 | 8.75 | URB6x9i | 7 | 9.5 | 0.125 |
| URG4.37.87.8 | 4.375 | 7.75 | 7.75 | UB9.8×9.8j | 9.75 | 9.75 | 0.125 |
| URG41717 | 4.125 | 17 | 17 | *URB17x17i | 17 | 17 | 0.1875 |
| URG41316 | 4 | 13 | 16 | *URB13x16h | 13 | 16.25 | 0.1875 |
| URG3.50707 | 3.5 | 7 | 7 | URB7x7g | 7.5 | 7.5 | 0.125 |
| URG3.50608 | 3.5 | 6 | 8 | URB6x8g | 6.5 | 8.5 | 0.125 |
| URG3.5056.5 | 3.5 | 5 | 6.5 | URB5x6.5g | 5.5 | 7 | 0.125 |
| UG3.50416 | 3.5 | 4 | 16 | URB4x16g | 4 | 16 | 0.125 |
| UG3.50406 | 3.5 | 4 | 6 | URB4.5×6.5g | 4.5 | 6.5 | 0.125 |
| URG31215.2 | 3 | 12 | 15.25 | *URB12x15.2f | 12.5 | 16 | 0.1875 |
| URG30606 | 3 | 6 | 6 | URB7x7f | 7 | 7 | 0.125 |
| URG2.516.2520 | 2.5 | 16.25 | 20 | URB17.25x21e | 17.25 | 21 | 0.125 |
| URG2.50818 | 2.5 | 8.625 | 18.25 | URB8x18e | 9 | 18.5 | 0.125 |
| URG2.54.85.8 | 2.5 | 4.75 | 5.75 | URB5x6e | 5 | 6 | 0.125 |
| URG21925 | 2 | 19 | 25 | *URB19x25d | 19.25 | 25.25 | 0.1875 |
| URG21419 | 1.75 | 14 | 19.25 | *URB14x19c | 14.25 | 19.5 | 0.1875 |
| URG21117 | 1.75 | 11.25 | 17 | URB11x17c | 11.5 | 17.5 | 0.125 |
| URG20408 | 1.75 | 4 | 7.75 | URB4x8c | 4.25 | 7.25 | 0.125 |
| URG20406 | 1.75 | 4 | 6.75 | URB4x6c | 4.25 | 6.25 | 0.125 |
| URG1.505.810.8 | 1.5 | 4.875 | 10.875 | URB6.8×11.8d | 6.875 | 11.875 | 0.125 |
| URG109.214 | 1 | 9.25 | 14 | URB9.2x14b | 9.25 | 14 | 0.125 |
| URG1820 | 1 | 8 | 20 | URB8x20b | 8.25 | 20.25 | 0.125 |
| URG10406 | 1 | 4 | 6 | URB4x6b | 4.25 | 6.25 | 0.125 |
| URG13.212 | 1 | 3.25 | 12 | URB4.2x13b | 4.25 | 13 | 0.125 |
| URG0.80811 | 0.75 | 8 | 11 | UB9x12c | 8.25 | 11.25 | 0.125 |
| URG0.7505.47 | 0.75 | 5.375 | 7 | UB5.5×7.2c | 5.5 | 7.25 | 0.125 |
